How Oswell's Rogowski Coils Enable Accurate Measurement of Complex Current Waveforms
How Oswell's Rogowski Coils Enable Accurate Measurement of Complex Current Waveforms
The Challenge of Measuring Modern Electrical Currents
Modern power systems, particularly those integrated with renewable energy sources, variable-speed motor drives, and non-linear electronic loads, are no longer characterized by pure sinusoidal currents. Instead, they carry complex waveforms rich in harmonics, transients, and rapid switching components. Traditional measurement devices like iron-core current transformers (CTs) struggle with these conditions. Their magnetic cores can saturate under high DC components or fast-changing currents, leading to distorted outputs, measurement errors, and potential safety risks. They are also bulky, heavy, and have a fixed current ratio, limiting their flexibility in high-bandwidth applications. Capturing the true behavior of currents in systems like solar inverters, EV chargers, and industrial motor controllers demands a sensor technology that is inherently linear, free from saturation, and capable of faithfully reproducing rapid changes—requirements that point directly to the principle of the Rogowski coil.
The Physics and Precision of Oswell's Rogowski Coil Design

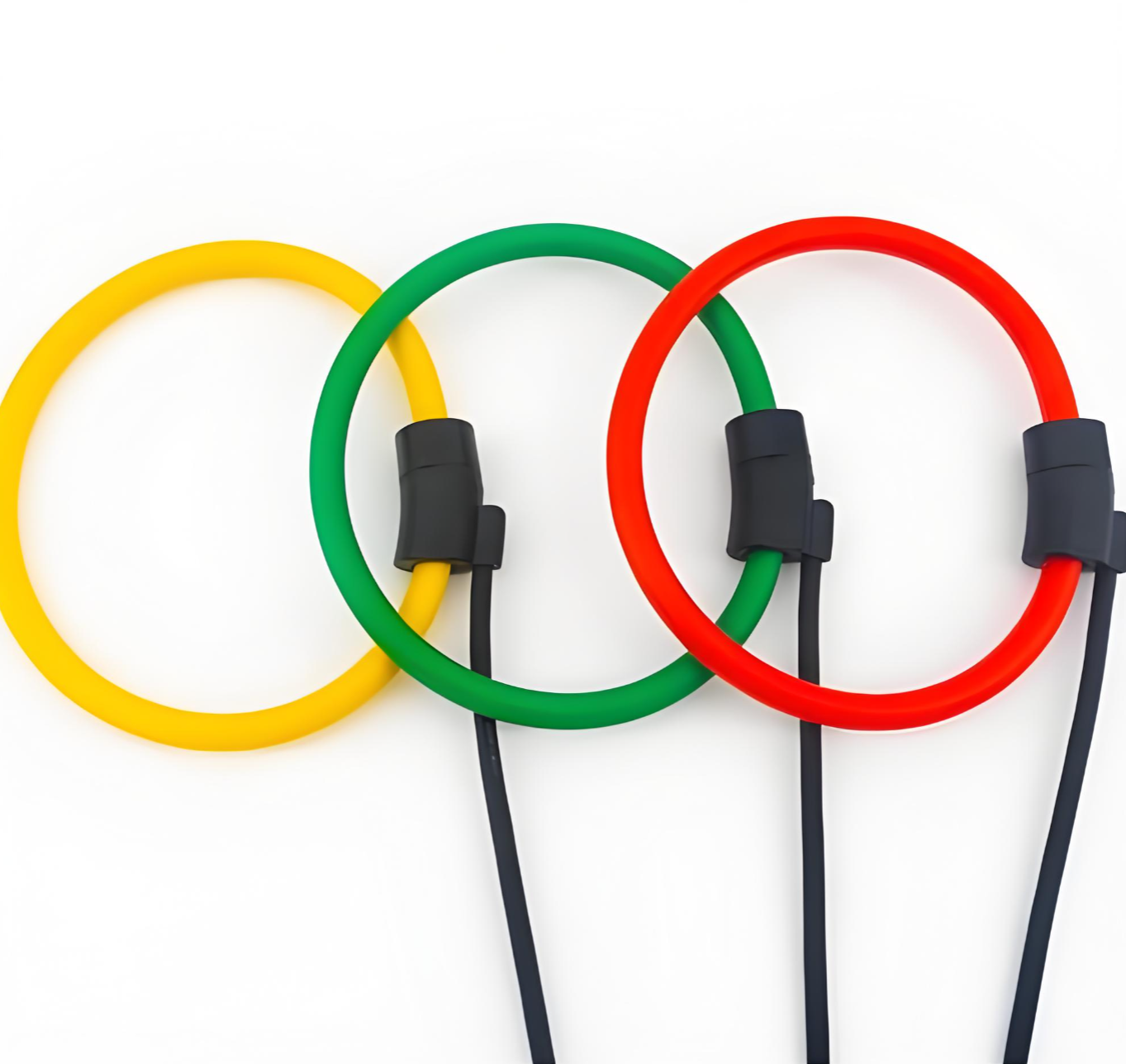

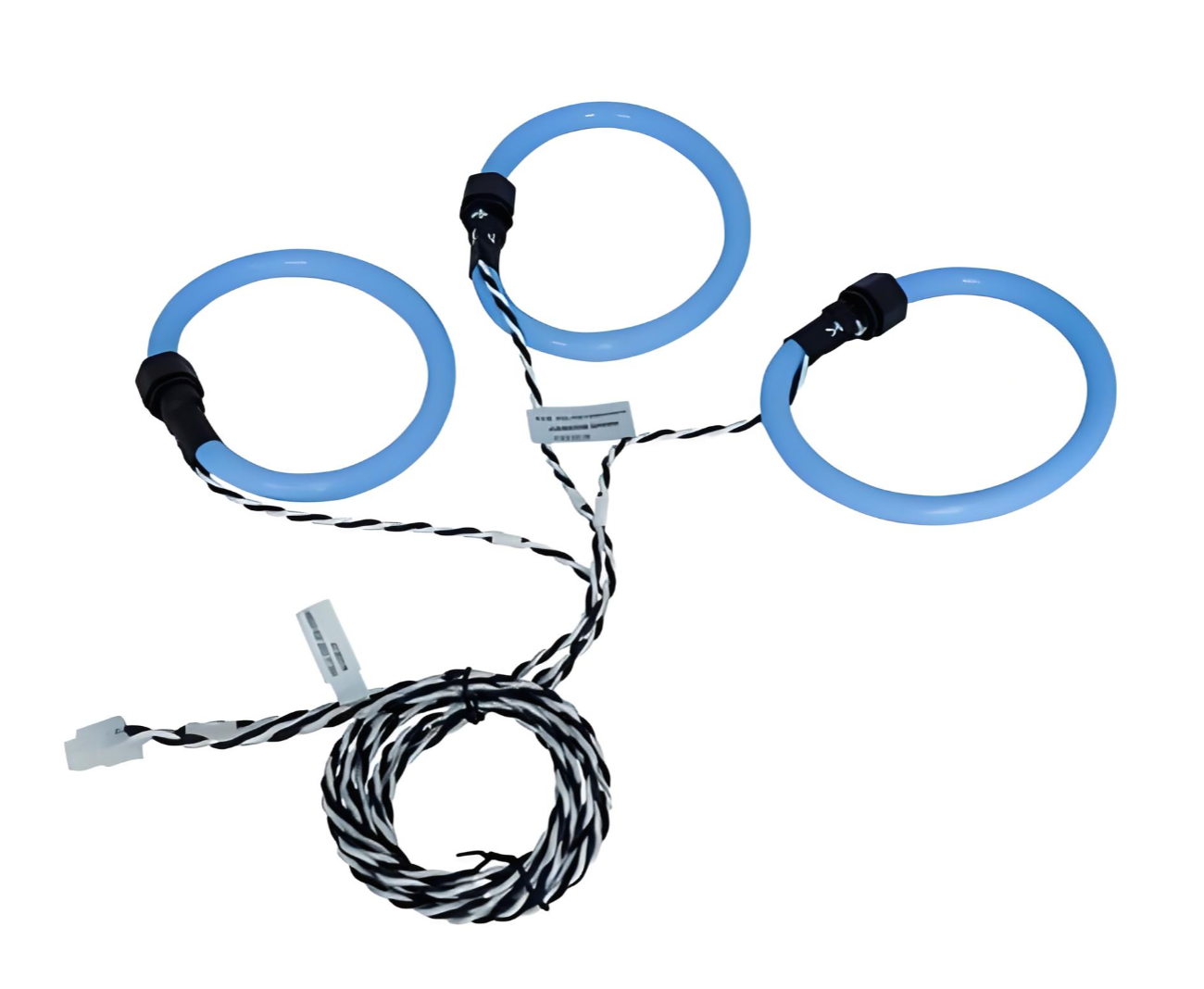

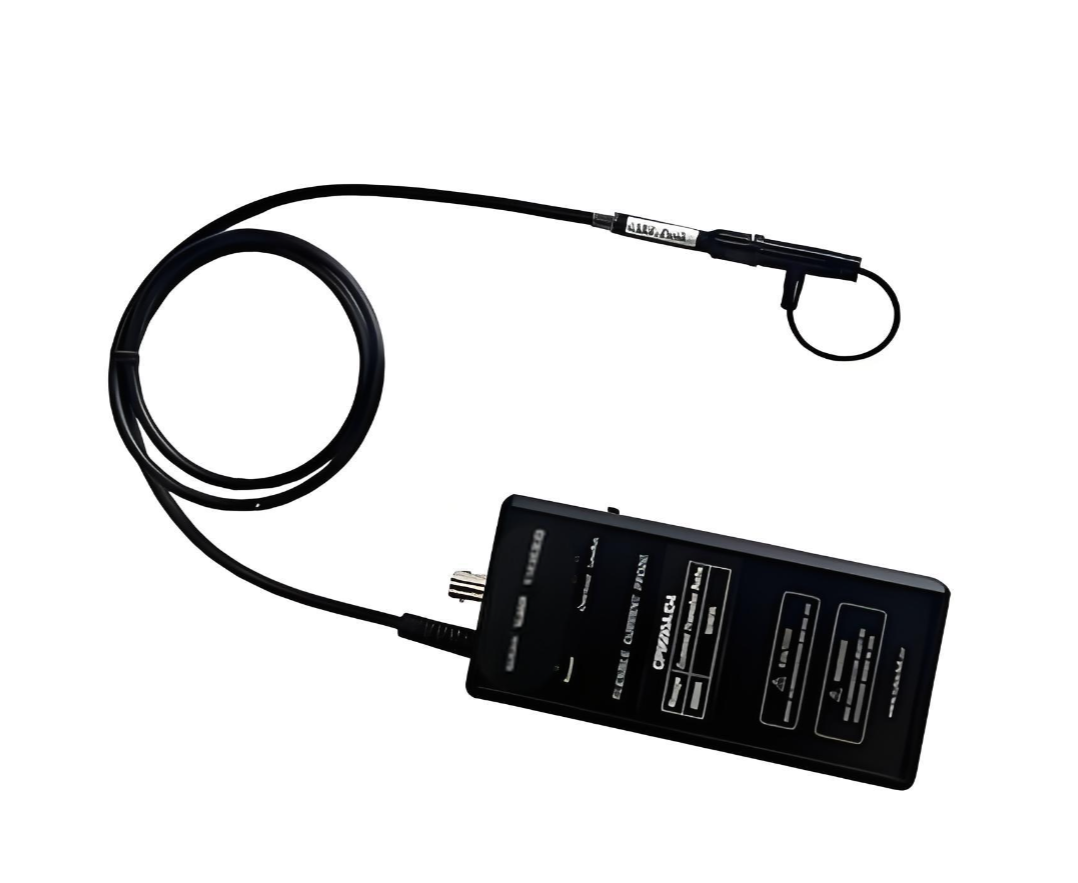

Oswell's Rogowski coils operate on a fundamentally different principle: they are air-core sensors. A Rogowski coil consists of a helical coil wound uniformly on a non-magnetic, flexible core—often made of high-stability materials—that is then looped around the conductor to be measured. The key innovation is the absence of a ferromagnetic core. Instead of inducing a secondary current through magnetic flux in a core, the coil responds to the rate of change (dI/dt) of the primary current via mutual inductance. The output voltage of the coil is proportional to this derivative. To reconstruct the original current waveform, this signal is then processed by a precision electronic integrator. Oswell's engineering excellence lies in optimizing this chain. Their coils are meticulously wound to ensure exceptional linearity across an enormous dynamic range—from a few amps to hundreds of kiloamps—with no risk of saturation, even in the presence of large DC offsets. The flexible design allows for easy installation around conductors of virtually any shape or size, while the air-core construction provides a wide frequency response, accurately capturing high-order harmonics and fast switching edges that are critical for power quality analysis and fault detection.
Critical Applications in Advanced Electrical Systems
This unique combination of characteristics makes Oswell's Rogowski coils indispensable in today's most demanding measurement scenarios. In Power Quality Analysis, they are the preferred tool for capturing harmonic distortion, inrush currents, and transients without saturation, providing a true picture of grid or facility health. For Protection and Fault Detection, their ability to measure high-magnitude, fast-rising fault currents with high fidelity is crucial for triggering precise relay protection, safeguarding expensive equipment. In the Renewable Energy sector, they enable precise measurement of the complex, pulse-width-modulated (PWM) currents generated by solar inverters and wind turbine converters, essential for performance optimization and grid compliance. Furthermore, their inherent electrical isolation and absence of a solid core eliminate the risk of open-circuit hazards present with traditional CTs, enhancing system safety. By providing a reliable window into the true nature of complex currents, Oswell's Rogowski coils empower engineers to design more efficient systems, ensure compliance with standards like IEEE 519, and diagnose elusive electrical problems with confidence.
In the evolving landscape of electrical engineering, where waveforms are increasingly complex, the limitations of traditional measurement methods become starkly apparent. Oswell's Rogowski coils transcend these limitations by offering a blend of linearity, dynamic range, frequency response, and safety that is perfectly suited for the modern grid. They are not merely an alternative to traditional CTs; they are an enabling technology for accurate measurement in the age of power electronics and distributed generation, providing the clarity needed to optimize, protect, and innovate within increasingly sophisticated electrical ecosystems.
