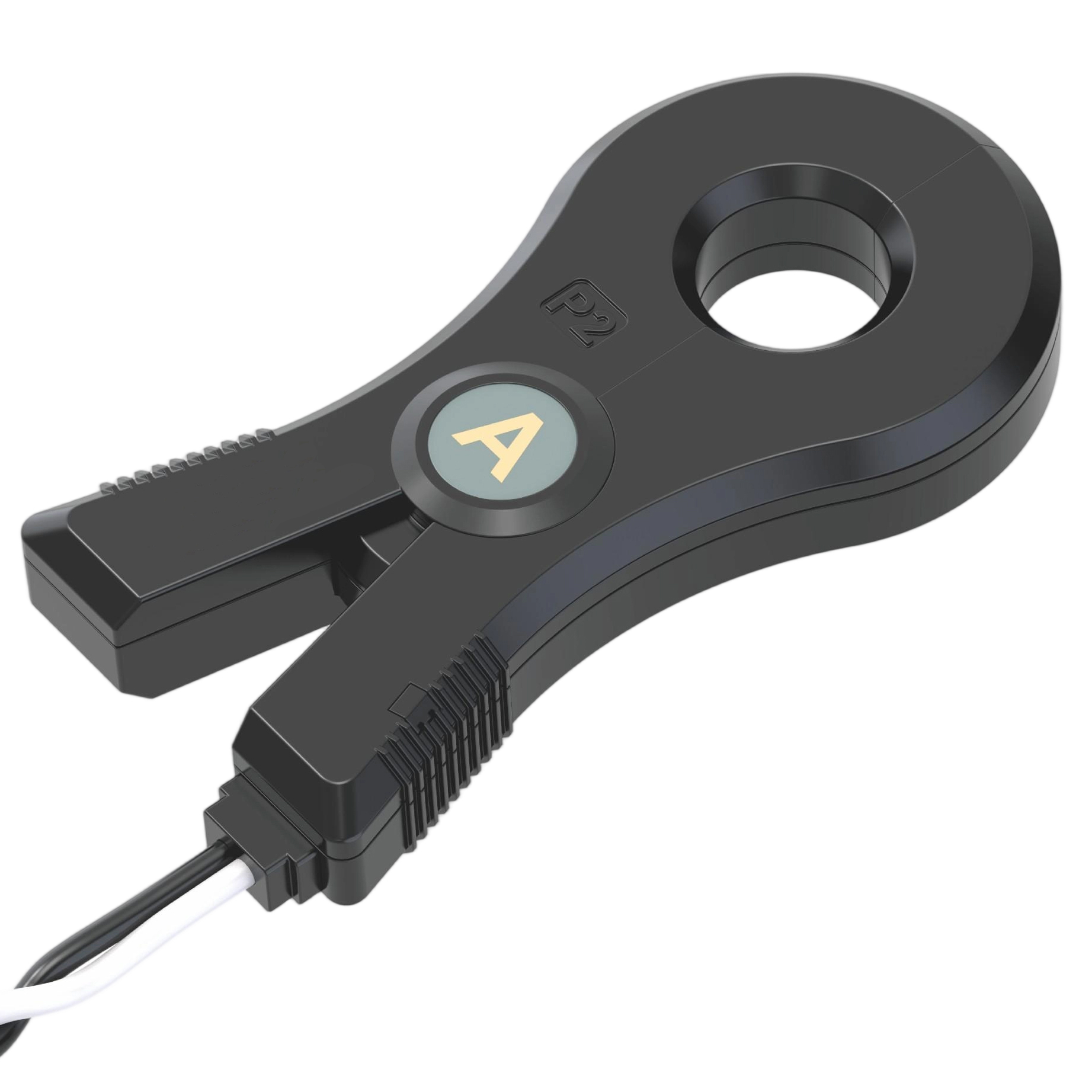

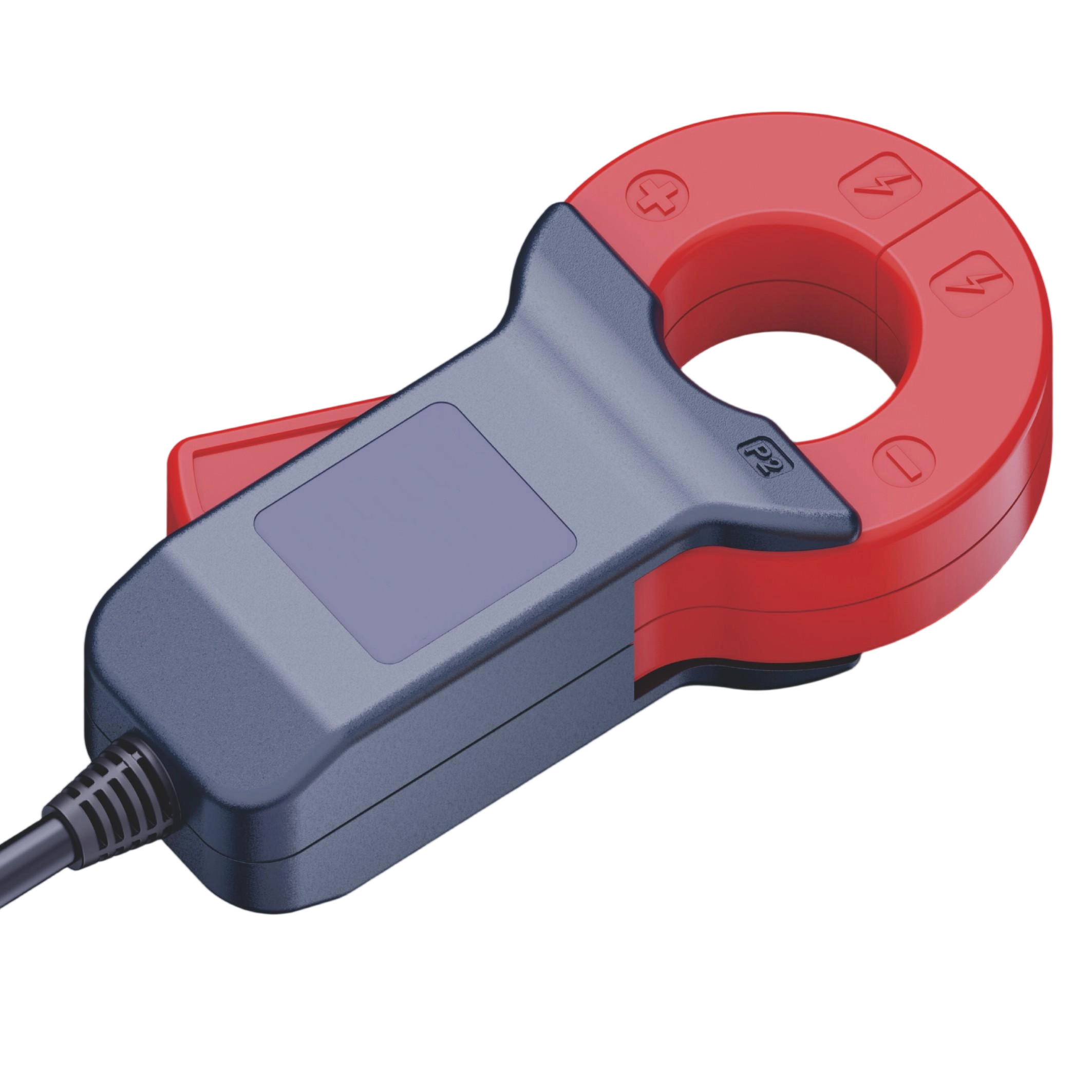

SDQxxX Series Current Clamp
- OSWELL
- CHINA
The primary current of the SDQxxX series current clamp main circuit includes 1A~ 1250A, and the rated secondary output current is 0A ~ 5A (0~ 1V). This series of products can meet the technical requirements of grade 0.5, grade 1 and other different precision. GB/T20840.1.2.
It is widely used Power monitoring, energy consumption management, intelligent power system, electromagnetic relay protection, microcomputer protection, motor protection, rural power grid transformation, substation transformation, environmental protection detection, etc.
Rated Current | 1-1250A (optional) |
Rated Output | 0A ~ 5A (0~ 1V) |
Accuracy | 0.2%, 0.5%, 1.0% |
Window Size | 16mm/25mm/40mm/50mm (optional) |
Altitude | 1000M |
Core Material | Microcrystal / Silicon Steel |
Case Material | ABS+PC |
Secondary Wire | 2*0.3mm² 1.5m sheathed wire (length optional) @ output (mA) 2*1.5mm² 1.5m sheathed wire (length optional) @ output (A) |
Isolation Resistance | DC500V/100MQ |
Dielectric Strength | 4kV/60s/1mA |
Operating Temperature | -25°C ~ +75°C |

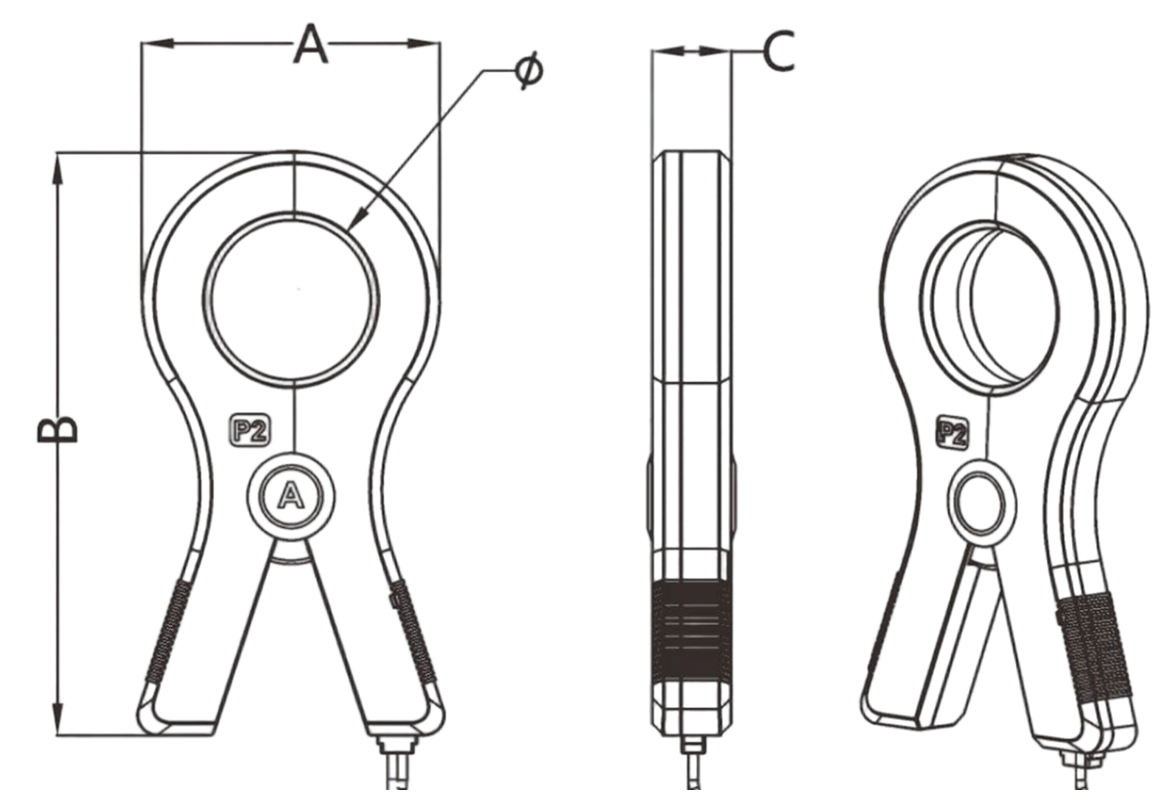

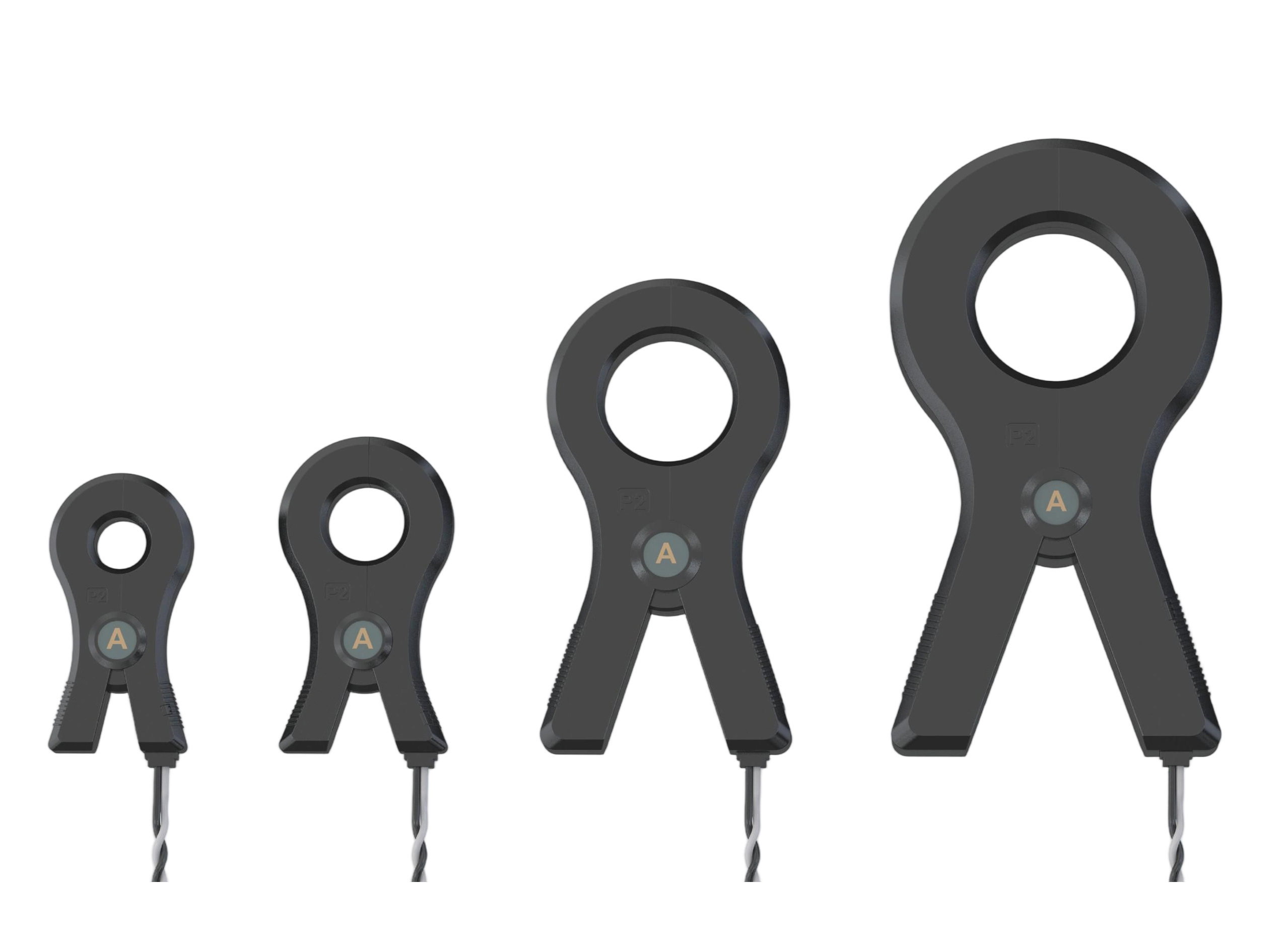

Model | Rated Input | Dimensions | |||
φ | A | B | C | ||
SDQ16X | 1-100A | 16 | 44 | 86 | 13.5 |
SDQ25X | 1-250A | 25 | 54 | 98 | 13.5 |
SDQ40X | 1-600A | 40 | 75 | 147 | 20 |
SDQ50X | 1-1250A | 50 | 103 | 191 | 28 |
