OFLS Series Rogowski coil
- OSWELL
- CHINA
- 10-20 DAY
- 5K

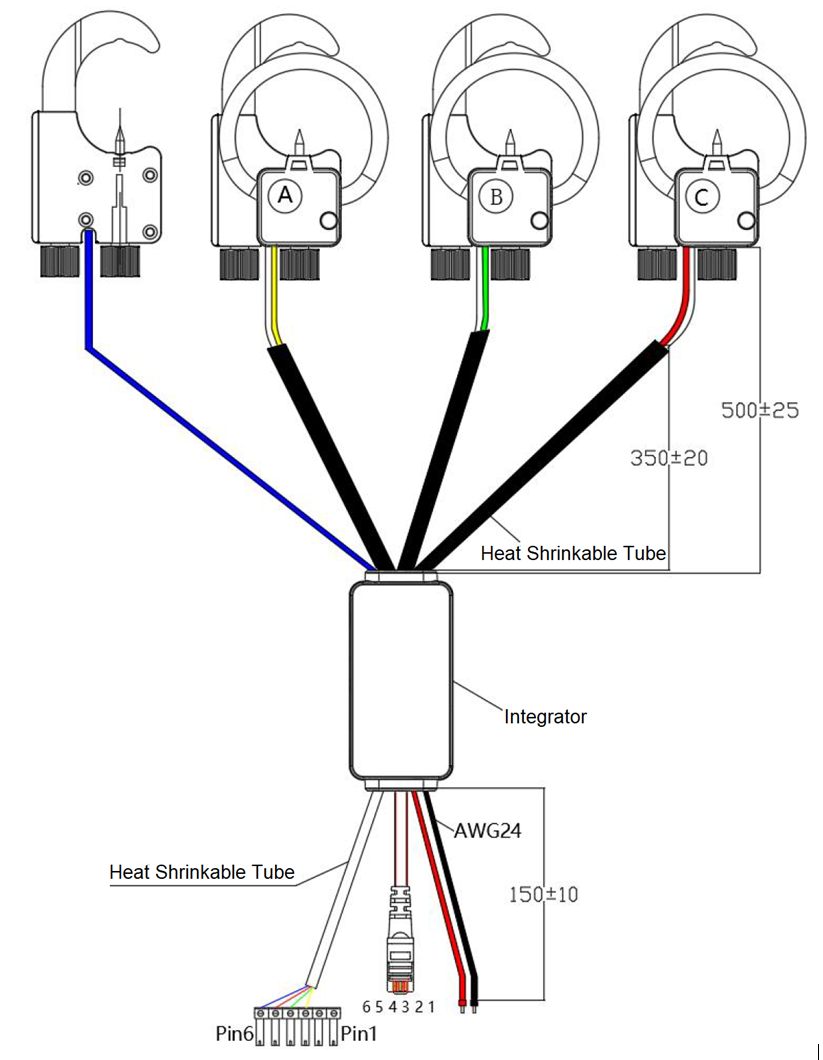

The OFLS series Rogowski Coil is used for electronic measurement of AC current. The error due to the position of the measured conductor within the aperture and the error due to the proximity of the external conductor are greatly reduced using magnetic shielding techniques.
It has the advantages of fast response, small volume, small power consumption, frequency response width, anti-interference, lightning wave and shock wave protection.
Current Measurement | 100kA Max |
Window Size | 30,40,50,60mm (with a fixed structure) 30,40,50,60,80,100,150,200,300 (without a fixed structure) |
Output Signal | 0~20mA, 0~10V, RS485, RJ12 (can be customized) |
Accuracy | 0.5s Class @ Fixed-Position 1.0 Class @ Non-fixed state, busbar passes vertically through the coil. 1.5 Class @ Non-fixed state, busbar inclined through the coil |
Rated Frequency | 50Hz/60Hz |
Linearity | 0.1% |
Temperature Drift | ≤0.5% |
Bandwidth (3Db) | 45Hz~5kHz |
Altitude | 4000M |
Relative Humidity | ≤75% RH |
Flame Retardant Rating | PC, UL94-V0 |
Dielectric Strength | 3kV/60s/50Hz |
Operating Temperature | -40°C ~ +70°C |
Error Limit Table
| Rated Current Ib | |||
| 1%Ib>I≥0.4%Ib | 4%Ib>I≥1%Ib | 10%Ib>I≥4%Ib | I≥10%Ib |
Ratio Error | 0.75&*(4%Ib/I) | 1.5% | 0.5% | 0.25% |
Phase Displacement | 90′ | 60′ | 12′ | |
The ratio error for the portion less than 1%Ib is a dynamic value. | ||||
