Introduction

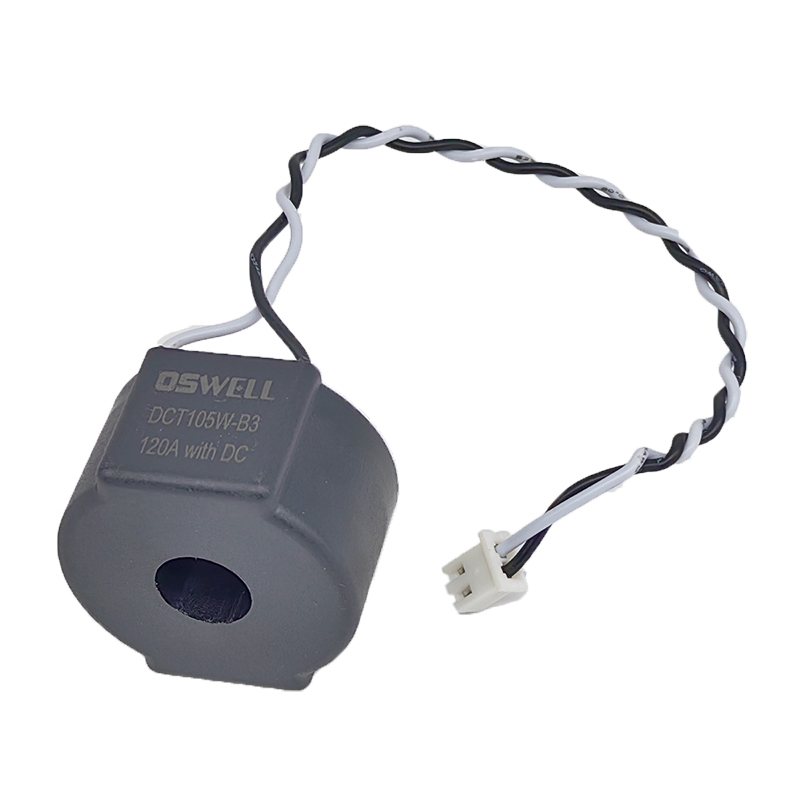

With the increasing complexity of modern electrical systems, DC-immune current transformers (CTs) have become essential for accurate current measurement in environments with DC offset or mixed AC/DC currents. The DCT105W-B3 120A CT with DC immunity represents a significant advancement in this field, offering precise current sensing even in the presence of DC components. This article explores the working principle, technological innovations, and competitive advantages of DC-immune CTs, with a focus on the DCT105W-B3, while also examining their potential in high-precision applications such as electric vehicle (EV) charging stations and industrial DC drive systems.
Principle & Innovation of DC-Immune Technology
Traditional CTs rely on magnetic flux changes induced by AC currents, making them insensitive to DC components. However, in circuits with DC bias (e.g., renewable energy systems, EV chargers, and industrial power supplies), conventional CTs may saturate or produce inaccurate readings.
The DCT105W-B3 CT overcomes this limitation through:
Specialized Core Materials (e.g., Nanocrystalline Alloys) – These materials minimize hysteresis and saturation effects, ensuring linear response even with DC offset.
Advanced Signal Processing – The CT’s integrated circuitry filters out DC noise while maintaining high accuracy for AC measurements.
Dynamic Range Optimization – Unlike standard CTs, it handles both low and high-current fluctuations without losing precision.
Compared to conventional CTs, the DCT105W-B3 offers superior accuracy (±0.5% typical) and stability in harsh electrical environments.
Advantages Over Conventional CTs
DC Offset Rejection – Maintains true AC current measurement without interference from DC components.
High Bandwidth & Fast Response – Ideal for fast-switching power electronics (e.g., SiC/GaN inverters in EVs).
Enhanced Safety & Reliability – Galvanic isolation prevents high-voltage hazards in industrial and utility applications.
Future Applications & Research Directions
EV Charging Infrastructure – Ensures accurate current monitoring in high-power DC fast chargers (350kW+).
Industrial DC Drives & Renewable Energy – Critical for solar/wind farm inverters and motor control systems.
Smart Grids & Energy Storage – Improves grid stability by detecting DC anomalies in battery management systems (BMS).
Future developments may include AI-driven self-calibration, wider dynamic ranges, and integration with IoT for predictive maintenance.
Conclusion
The DCT105W-B3 CT exemplifies the next generation of DC-immune current measurement, addressing key challenges in modern power systems. As EVs, renewables, and industrial automation expand, DC-immune CTs will play a crucial role in ensuring precision, safety, and efficiency in electrical measurements.
