240kW Ultra-Fast DC Chargers: Meeting the Demand for Long-Haul EV Travel
240kW Ultra-Fast DC Chargers: Meeting the Demand for Long-Haul EV Travel
1. Technological Architecture of 240kW Charging Systems

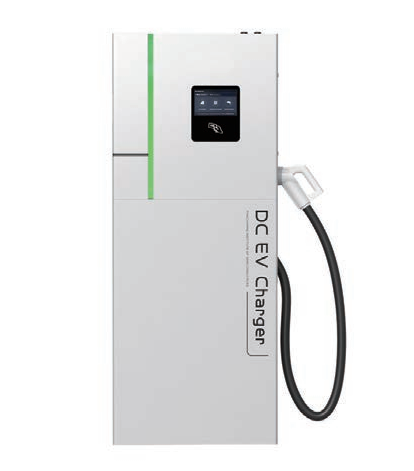

240kW ultra-fast DC chargers represent the pinnacle of current EV charging technology, designed specifically to address range anxiety during long-distance travel. These systems employ advanced power conversion modules that transform three-phase 400VAC±10% input into DC output ranging from 200V to 1000V, with maximum current delivery reaching 400A. The core technology involves multiple 20-40kW charging modules operating in parallel, utilizing CAN bus communication for precise power allocation and load balancing. Oswell's PCDC-YZ4 series incorporates dual DSP digital control systems that enable intelligent thermal management through independent air duct designs and forced air cooling. This architecture supports flexible power distribution between two charging guns, allowing simultaneous vehicle charging while maintaining optimal efficiency levels above 95%. The system's 7-inch LCD touchscreen provides real-time monitoring of charging parameters, while OCPP 1.6/2.0.1 protocol compliance ensures seamless integration with network management platforms.
2. Performance Characteristics and User Experience Optimization
The charging performance of 240kW stations demonstrates remarkable capabilities, achieving 80% battery charge for most EVs within 15-30 minutes. These systems maintain voltage stabilization accuracy within ±0.5% and current stabilization precision within ±1% across the entire 200-1000V operating range. User experience enhancements include multiple authentication methods (RFID cards, mobile APP scanning, VIN code recognition) and flexible payment options (automatic charging, fixed power, fixed amount, or timed charging). Safety features encompass comprehensive protection mechanisms against over-current, over-voltage, under-voltage, short circuits, and over-temperature conditions, complemented by emergency stop buttons and surge protection rated at 20kA. The stations operate reliably in diverse environmental conditions, with temperature ranges from -20℃ to 55℃ at full power and derated operation up to 75℃, while IP54 and IK10 ratings ensure durability against dust, moisture, and physical impacts.
3. Infrastructure Integration and Future-Readiness
Integration of 240kW chargers into existing infrastructure requires careful planning regarding power capacity, grid connectivity, and site specifications. These stations typically demand 3P+N+PE wiring configuration and generate noise levels below 65dB during operation. Their dimensions (approximately 700×550×1900mm) and weight (230-260kg) necessitate proper foundation support and accessibility planning. Future-ready features include support for ISO 15118 Plug & Charge functionality, V2G (Vehicle-to-Grid) capability for energy bidirectional flow, and compatibility with emerging battery technologies up to 1000V. The stations' modular design allows for power upgrades and maintenance optimization, while remote diagnostics capabilities minimize downtime. As charging standards evolve, these systems provide migration paths toward 350kW and higher power levels through component upgrades, ensuring long-term viability along major transportation corridors.
Conclusion
240kW ultra-fast DC chargers represent a transformative solution for long-distance EV travel, combining high-power delivery with sophisticated control systems and user-centric features. Their ability to provide rapid charging while maintaining efficiency, safety, and reliability makes them essential components in the evolving EV infrastructure landscape. As electric vehicle adoption accelerates and battery technologies advance, these charging systems will play a crucial role in enabling seamless long-haul mobility, ultimately supporting the global transition to sustainable transportation.
