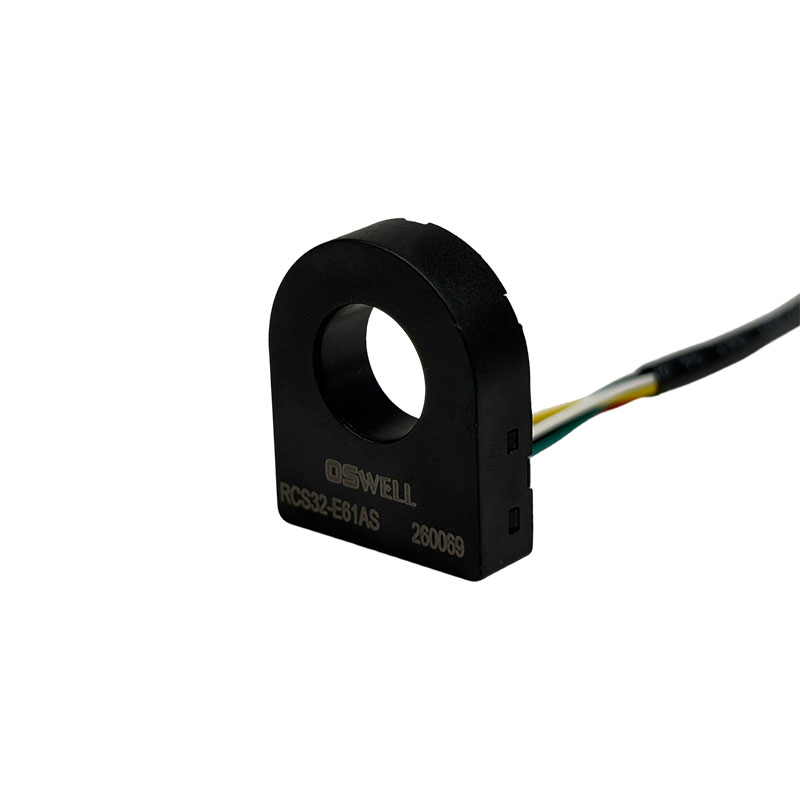

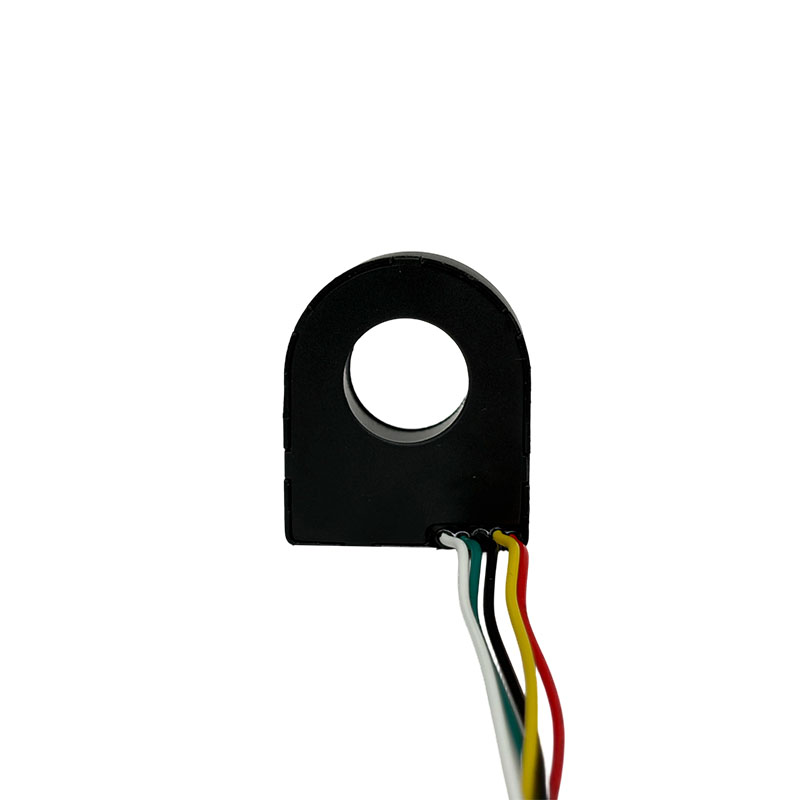

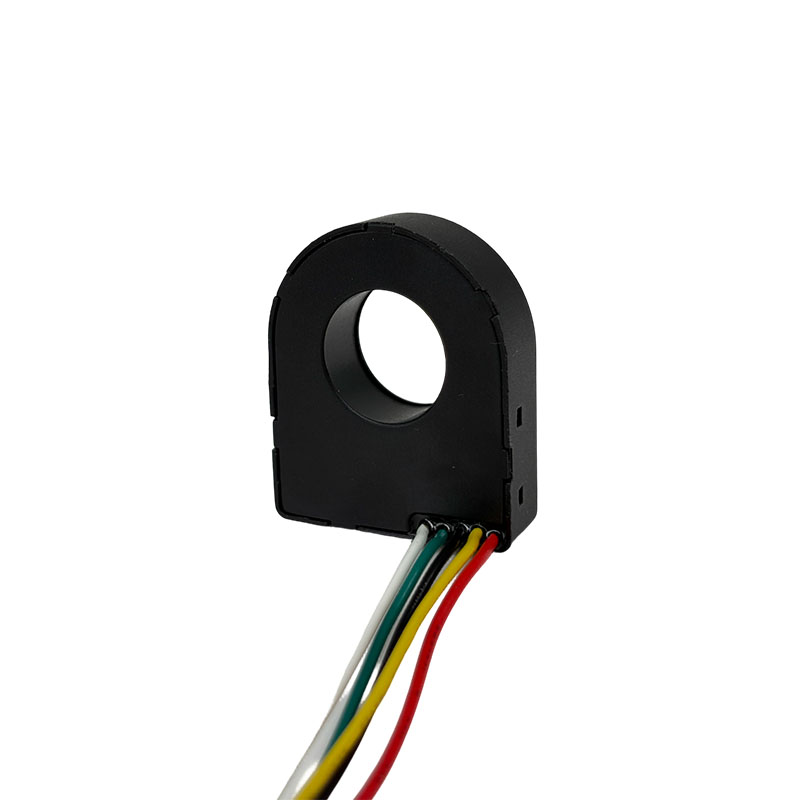

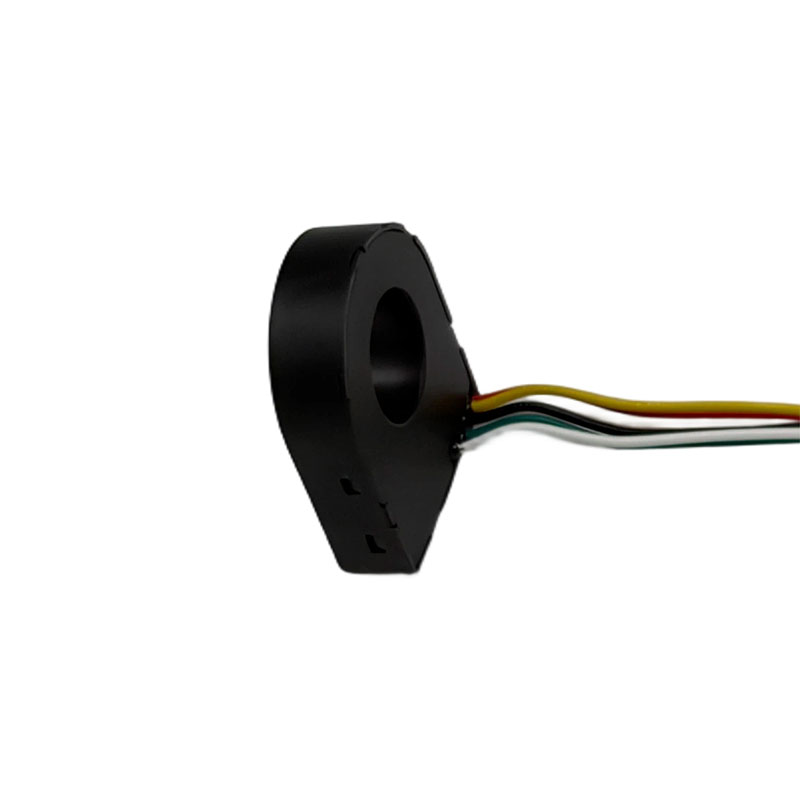

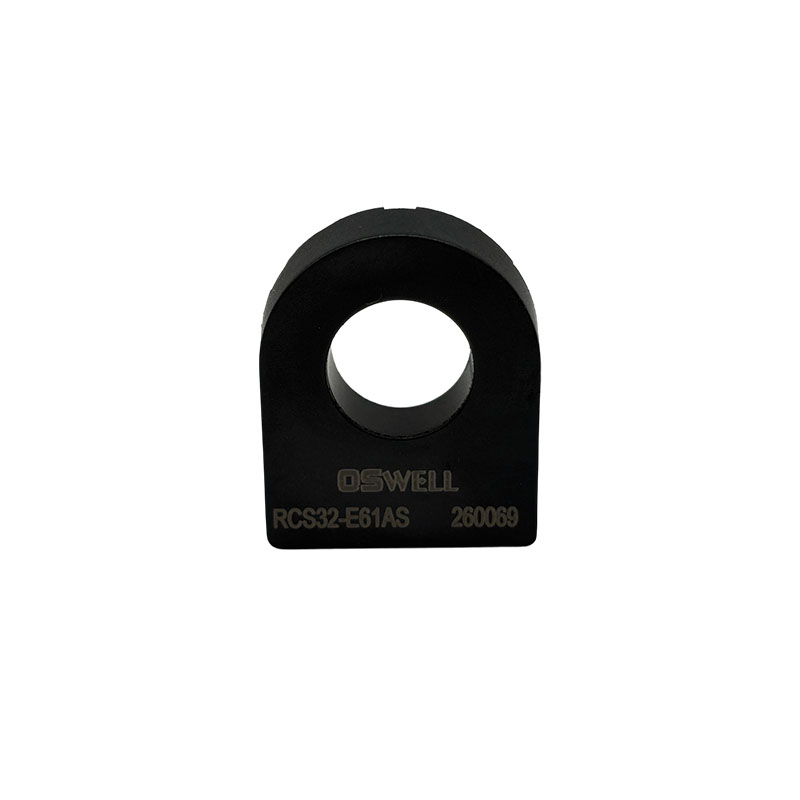

RCS32-E61AS Type B and Type A6 Residual current sense
- OSWELL
- CHINA
- 10-15天
- 50k
Dedicated Type B charging pile compatible with onboard type A6 residual current protection module.
All-in-One highly integrated digital residual current action indicator.
Integrated self-test and calibration pins,saving customer hardware resources.
Meet the requirements of GB/T 40820 (IEC 62955) for the residual current operation characteristics of the mode three charge RDC-PD & RDC-MD.
XMD-Trip-Current(residual current related characteristics)
| Wav. | Freq. | Min. | Typ. | Max. | Unit |
| 2PDC | 50Hz | 4.0 | 5.0 | 7.0 | mA |
| 3PDC | 50Hz | 4.0 | 4.6 | 6.0 | mA |
| S-DC | - | 4.0 | 4.6 | 6.0 | mA |
XPD-Trip-Current(residual current related characteristics)
| Wav. | Freq. | Min. | Typ. | Max. | Unit |
| AC | 50Hz | 21.0 | 23.2 | 26 | mA |
| 2PDC | 50Hz | 4.0 | 5.0 | 7.0 | mA |
| 3PDC | 50Hz | 4.0 | 4.6 | 6.0 | mA |
| S-DC | - | 4.0 | 4.6 | 6.0 | mA |
Electrical & Reliability Characteristics
Operating Temperature: -40℃~105℃
Storage Temperature: -40℃~105℃
Operating Humidity: ≤95%
Supply Voltage(VDD): 4.85~5.15VDC
Consumption: ≤110mW
Voltage Input,low level: 0~0.6VDC
Voltage Input,high level: 4.2~5VDC
Dimension
