Advantages of Latching Relays in Smart Energy Meters
Advantages of Latching Relays in Smart Energy Meters

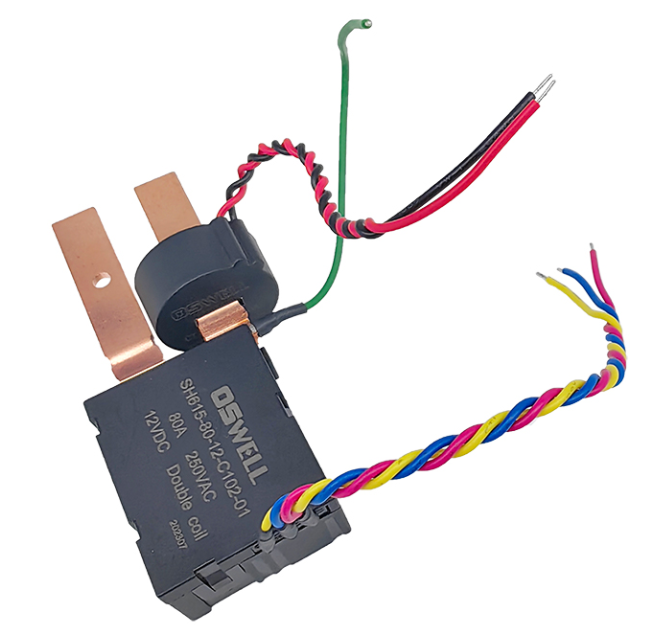

Ultra-Low Power Operation: Enabling Battery-Powered and Longevity-Critical Designs

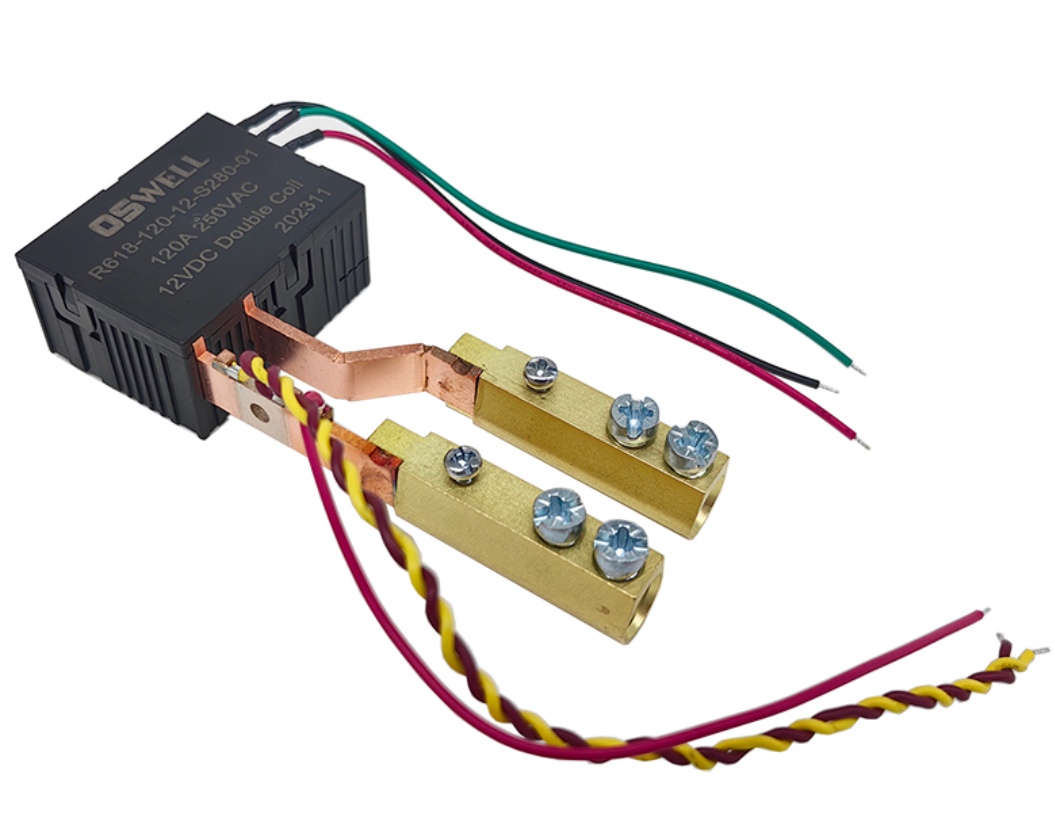

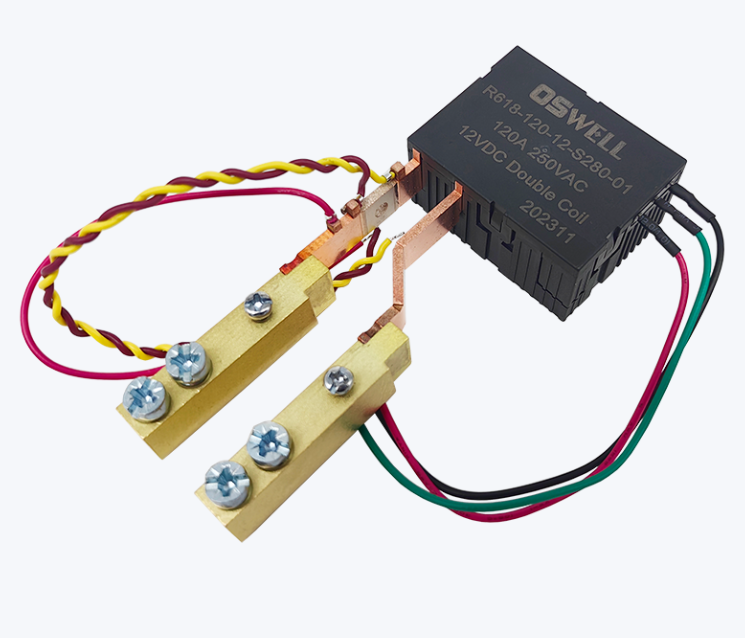

The most defining advantage of a latching relay (or bistable relay) in a smart meter is its exceptionally low power consumption during its steady state. Unlike a standard electromechanical relay that requires a continuous coil current to maintain its switched position (ON or OFF), a latching relay only needs a short, momentary pulse of energy to change state. Once switched, its contacts are held in place permanently by a permanent magnet or a mechanical latching mechanism, consuming zero coil power. This characteristic is revolutionary for smart meters, especially in battery-backed units or those designed for ultra-long operational life (often 10+ years). It dramatically reduces the meter's overall quiescent current, directly extending battery life in prepayment meters or meters that must maintain communication during a grid outage. This power efficiency is a cornerstone for designing next-generation, energy-autonomous metering devices.
Enhanced Reliability and Safety: Reduced Heat, Wear, and Fail-Safe Operation
The operational principle of the latching relay directly translates to superior reliability and safety—critical parameters for a meter installed for decades. Since it consumes no holding power, it generates negligible internal heat. This reduction in thermal stress significantly enhances the long-term stability of the relay's contacts and internal materials, slowing aging and preventing failures linked to coil overheating. Furthermore, the absence of a constant magnetic field reduces electromagnetic interference (EMI) with sensitive metering circuits. From a functional safety perspective, its bistable nature is a key asset. In a power failure event, a standard relay would de-energize and return to its default state, potentially cutting off power unintentionally. A latching relay, however, "remembers" its last state. If it was closed (supplying power) before an outage, it remains closed, ensuring power is automatically restored when grid electricity returns without requiring a control signal. This fail-safe memory function is vital for customer convenience and uninterrupted supply.
Optimized for Advanced Metering Functionality: Prepayment, Remote Control, and Load Management
Latching relays are the enabling technology for advanced smart meter functionalities that define modern energy grids. Their momentary pulse operation makes them perfectly suited for prepayment meters. A precise, low-energy pulse can disconnect (or reconnect) a customer's supply based on credit status, all while minimizing the energy drawn from the often-limited meter battery. For utilities, this enables seamless remote load control. A command from the Advanced Metering Infrastructure (AMI) can send a pulse to disconnect non-critical loads during peak demand, aiding in demand response programs. Similarly, remote connection/disconnection for service moves or non-payment becomes highly efficient and reliable. The relay's ability to maintain its state without power ensures that these control commands are executed once and then sustained, making the meter a robust and trustworthy endpoint in the smart grid network, capable of executing complex tariff and management schemes.
In summary, the latching relay is not merely a switch within a smart energy meter; it is a strategic component that addresses core challenges of power efficiency, long-term reliability, and advanced functionality. By eliminating standby power draw, it unlocks decade-long battery life and enables new, autonomous meter designs. Its inherent thermal and mechanical stability ensures operational integrity over the meter's extended lifespan. Finally, its bistable, pulse-driven nature is the perfect interface for executing remote commands and smart grid functions, from prepayment to demand response. Specifying a high-quality latching relay, therefore, is a fundamental design decision that directly impacts the performance, longevity, and intelligence of the smart metering system.
