The Critical Role of Precision Connectors: Enabling Reliable Electrical and Mechanical Interfaces

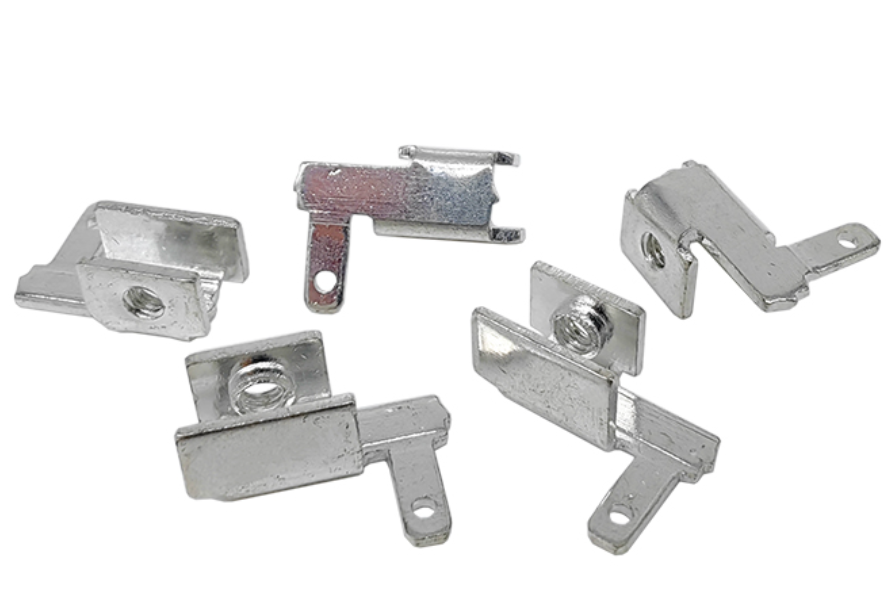

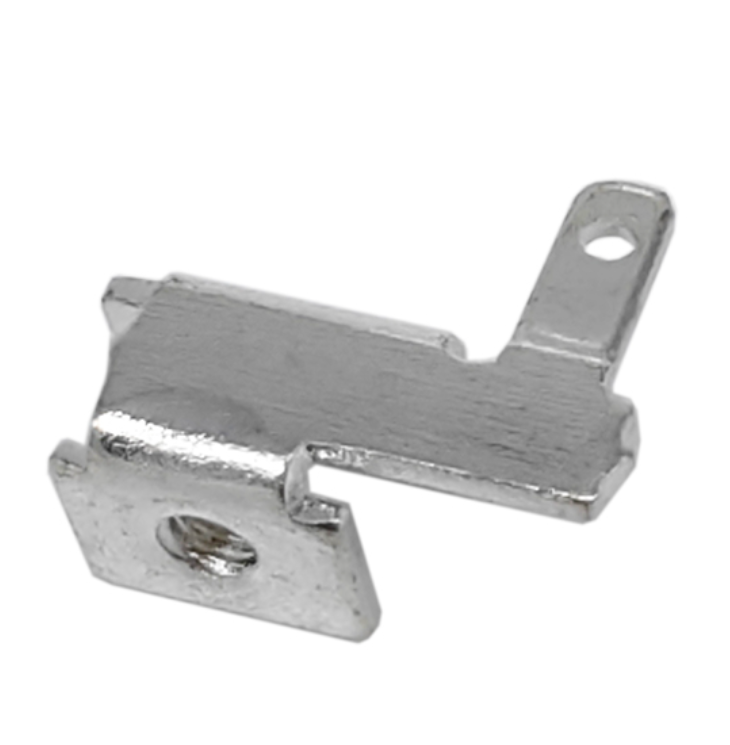

While electronic components form the "brain" of a smart meter, the physical connectivity—ensured by connectors, terminals, and screws—is the "nervous system" and "skeleton" that brings it to life. Custom-engineered terminal blocks provide secure, low-resistance, and durable interfaces for both high-current power paths and low-current signal lines. High-quality brass or phosphor bronze contacts, often with advanced plating like tin or silver, ensure minimal contact resistance, preventing power loss and heat generation over decades of service. Screws and spring clamps designed for specific wire gauges guarantee vibration-proof connections that withstand thermal cycling. For external connections, such as those for current transformers (CTs) or communication modules, robust plug-and-socket connectors ensure field technicians can make reliable connections quickly, without soldering, enhancing both manufacturability and field-serviceability. The precision and material science behind these seemingly simple parts are fundamental to the meter's long-term electrical integrity and safety.
Custom Stamping Parts: The Framework for Protection, Integration, and Aesthetics

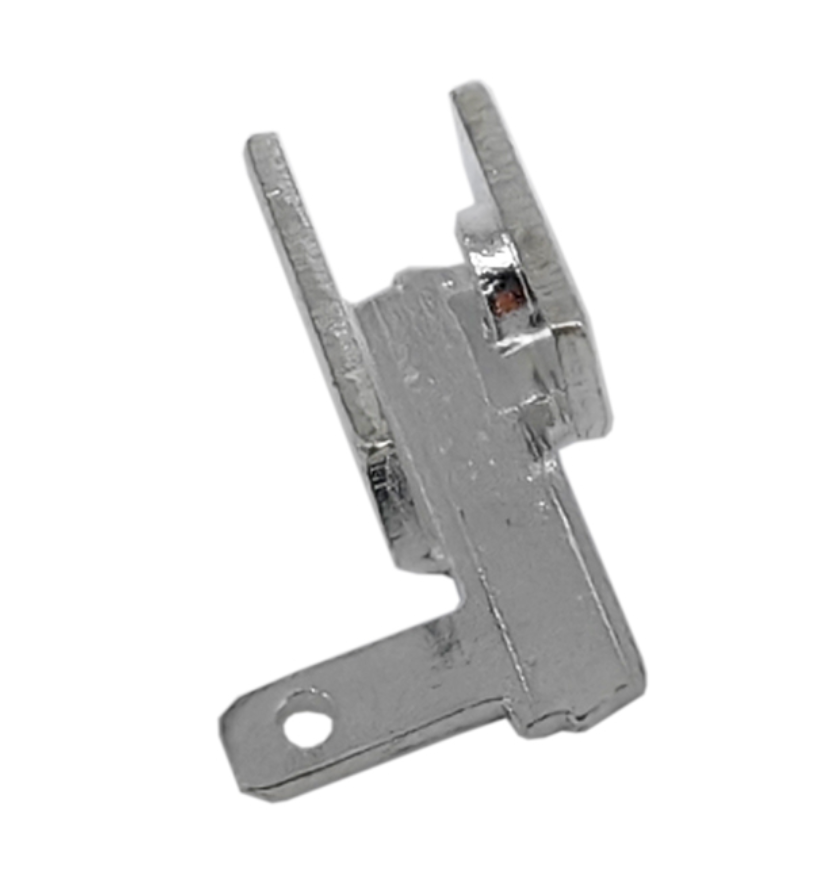

Beyond connectivity, the structural integrity, protection, and assembly efficiency of a meter are defined by its custom stamping parts. These are the precision metal components—brackets, shields, casings, and chassis—produced through high-volume, high-precision stamping and forming processes. A well-designed stamped metal chassis provides the rigid backbone for mounting PCBs, transformers, and relays, ensuring components remain securely aligned under mechanical stress and vibration. EM/IRFI shielding cans, stamped from specialized alloys, are critical for protecting sensitive metrology ICs from external electromagnetic interference, guaranteeing measurement accuracy. Furthermore, custom brackets and mounting plates allow for the modular integration of different functional units (e.g., communication, display, relay) into a compact, standardized housing. This not only streamlines assembly but also enables product variants (single-phase, three-phase, DIN-rail) to share a common design platform, accelerating time-to-market and reducing costs. The stamping process allows for complex geometries, tight tolerances, and excellent repeatability, making it ideal for creating the robust, cost-effective mechanical framework of a modern meter.
Enabling Scalable, Cost-Effective, and High-Quality Manufacturing
The synergy between custom connectors and stamping parts is a key driver for scalable, high-quality meter production. By standardizing on a set of optimized, custom-designed connection interfaces and structural parts, manufacturers can achieve significant economies of scale. Bulk purchasing of precision-stamped components reduces per-unit cost, while the inherent consistency of the stamping process ensures every part is identical, eliminating assembly variances that could affect performance. This standardization also simplifies the supply chain and assembly line processes, as workers deal with fewer, more purpose-fit parts. For the end product, this translates directly to higher reliability: secure connections prevent intermittent faults, and a robust stamped structure protects the internal electronics from physical damage. Ultimately, investing in high-quality, application-specific "Connect and Stamping Parts" is not a cost center but a value-adding strategy. It underpins manufacturability, reduces total lifetime cost of ownership by minimizing field failures, and provides the physical robustness that allows the sophisticated electronics within to perform accurately for the meter's entire operational life.
In summary, "Connect and Stamping Parts" are the unsung heroes of smart meter assembly. Far from being mere generic hardware, they are highly engineered, custom solutions that address the critical challenges of electrical reliability, mechanical robustness, and manufacturing efficiency. Precision connectors ensure every electrical interface is secure, stable, and low-loss, forming the foundation of the meter's operational accuracy. Custom stamping parts provide the protective, integrated, and scalable physical architecture. Together, they form the essential, high-quality physical layer upon which all advanced electronic metering functionality depends, ensuring the final product is not only intelligent but also durable, safe, and cost-effective to produce and deploy at scale.
