How Split-Core Current Transformers Simplify Installation and Retrofitting
How Split-Core Current Transformers Simplify Installation and Retrofitting
Eliminating Costly and Risky Power Disruptions

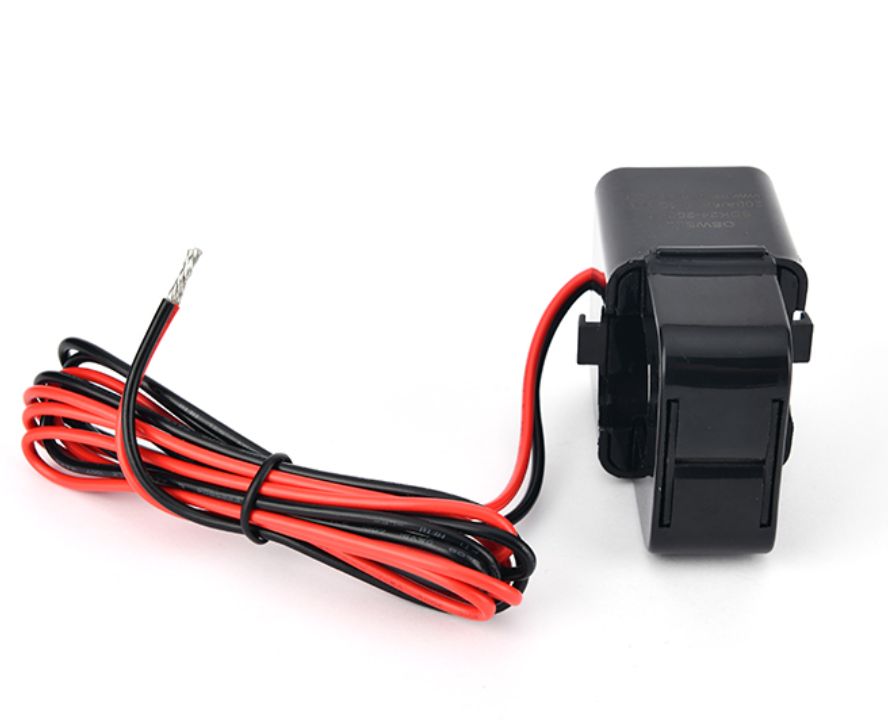

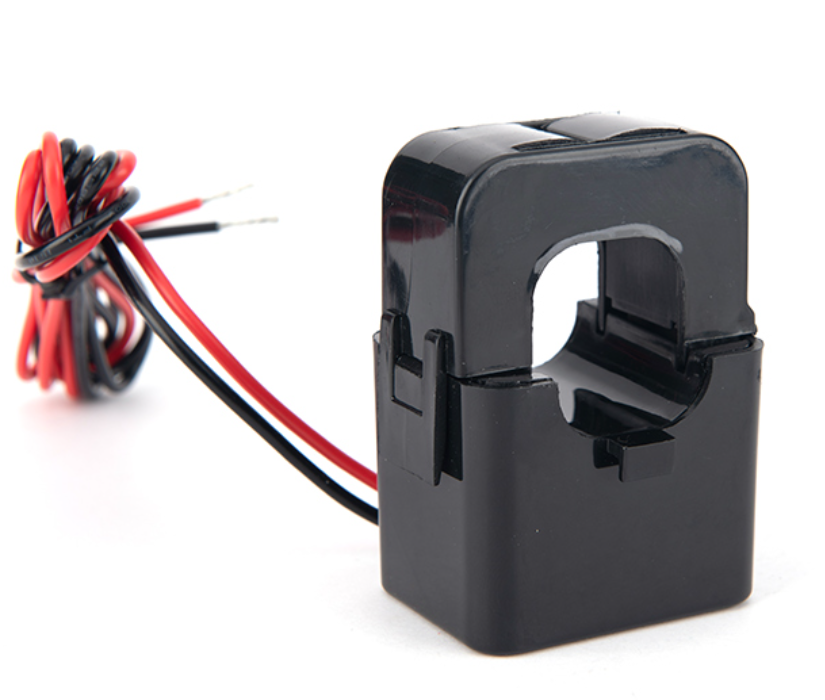

Split-Core Current Transformers (CTs) revolutionize installation by enabling non-intrusive deployment on live conductors. Unlike traditional solid-core CTs, which require the conductor to be threaded through a fixed aperture—often necessitating a complete system shutdown and cable disconnection—split-core variants feature a hinged or clamp-open design. This allows technicians to simply open the CT, place it around the existing energized cable, and snap it shut, all without interrupting the power supply. This capability is invaluable in critical facilities like data centers, manufacturing plants, and commercial buildings, where downtime translates directly to significant financial losses. By enabling safe, live installation, split-core CTs remove a major barrier to deploying or upgrading energy monitoring systems, making projects faster, safer, and drastically more economical.
Streamlining Retrofits in Space-Constrained and Existing Systems
Retrofitting monitoring equipment into established electrical panels and tight spaces poses a significant challenge. Solid-core CTs often require dismantling cable connections or rerouting conductors, which is physically impossible in many congested enclosures. The compact and flexible design of split-core CTs, like the SDQ series, is engineered specifically for these constrained environments. Their slim profile allows them to fit into dense panel layouts where traditional CTs cannot. Furthermore, the ability to install them without disconnecting cables means existing wiring configurations and terminations remain untouched, preserving the system's integrity and saving countless hours of labor. This makes split-core CTs the go-to solution for modernizing legacy systems, adding submetering capabilities, or integrating new monitoring points into a live electrical network with minimal fuss and maximum efficiency.
Enhancing Flexibility and Scalability for Future Needs
The ease of installation and removal inherent to split-core CTs provides unparalleled flexibility for system expansion and reconfiguration. As energy monitoring needs evolve—whether due to building expansions, process changes, or the addition of new equipment like EV chargers—split-core CTs can be easily relocated or added to new circuits without complex planning for system outages. This modularity supports a scalable approach to energy management. Facility managers can start with monitoring critical loads and effortlessly expand coverage over time. This adaptability not only protects the initial investment but also ensures the metering infrastructure can grow in tandem with operational demands, providing long-term value and a clear path for implementing a comprehensive, data-driven energy strategy.
In summary, split-core current transformers are a transformative solution for energy monitoring projects. They directly address the core challenges of installation cost, operational risk, and inflexibility by enabling live, non-intrusive deployment. By eliminating costly downtime, simplifying complex retrofits in tight spaces, and providing a foundation for future-proof scalability, split-core CTs, such as the innovative SDQ series, are not just a component but a strategic enabler. They empower businesses to deploy sophisticated monitoring with minimal disruption, turning energy data collection from a logistical hurdle into a straightforward, efficient, and continuously valuable process.
