How To Test The Electrical Life Of A Magnetic Latching Relay
Electrical life testing is one of the most important checks when evaluating a magnetic latching relay for real switching duty. OMRON defines electrical durability as the number of operations a relay can perform at a specified switching frequency with the rated load applied to the contacts, while mechanical durability is tested with no load. That difference matters because a latching relay may look excellent in no-load cycling, but still lose performance much sooner once real voltage, current, arcing, and inrush are introduced. Panasonic’s TX2-LT latching relay data shows exactly how load conditions change the result: its mechanical life is rated at 100 million operations, while electrical life drops to 500,000 operations at 1 A 30 VDC resistive, 100,000 operations at 2 A 30 VDC resistive, and 200,000 operations under a specified inrush-load test.

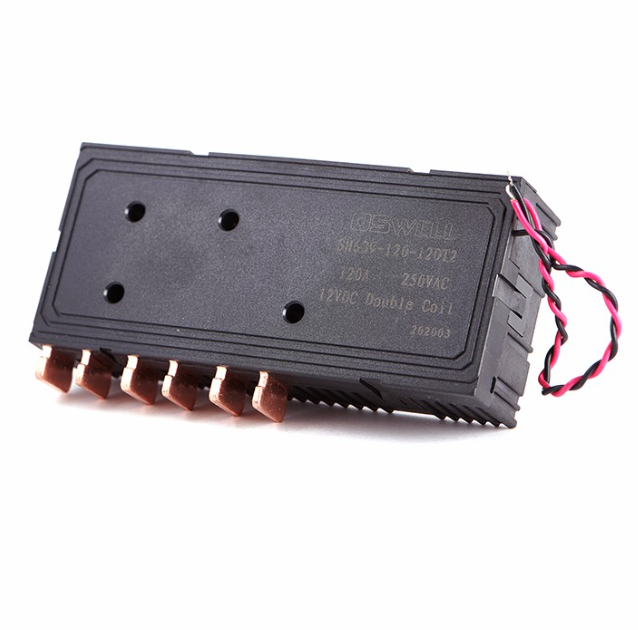

Build The Test Around The Real Load, Not Just The Catalog Rating
The first rule of electrical life testing is to reproduce the real application as closely as possible. OMRON says relay life values and durability curves are only guidelines and that the relay must be tested under actual load conditions. Panasonic says switching lifetime is defined under standard test conditions, but is affected by the coil driving circuit, load type, operating frequency, operating phase, ambient conditions, and other factors. That means a generic bench test is not enough if the final use case involves a motor, capacitive input, transformer, solenoid, lamp load, or a specific control waveform.
Load type is especially important because inrush changes contact stress dramatically. Panasonic notes that typical inrush can be 10 to 20 times steady current for solenoids, 5 to 10 times for motors, 10 to 15 times for incandescent lamps, 20 to 40 times for capacitive loads, and 5 to 15 times for transformer loads. It also warns that electrical life may be affected by the polarity between COM and NO, by high temperature, and by AC phase-synchronous switching. In practical testing, that means you should not only set nominal voltage and current. You should also reproduce startup current, load polarity, switching frequency, ambient temperature, and suppression circuitry if those are present in the real product.
For magnetic latching relays, coil drive conditions also need to be realistic. Panasonic’s TX2-LT data lists separate set and reset voltages, while OMRON’s MMK latching relay specifications state that electrical endurance is measured at 23°C and at a defined switching frequency. In other words, the test is not just about burning the contacts under load. It should use the intended set/reset pulse method, the correct coil voltage window, and a cycling rate that reflects either the datasheet method or the field duty profile you are actually trying to qualify.

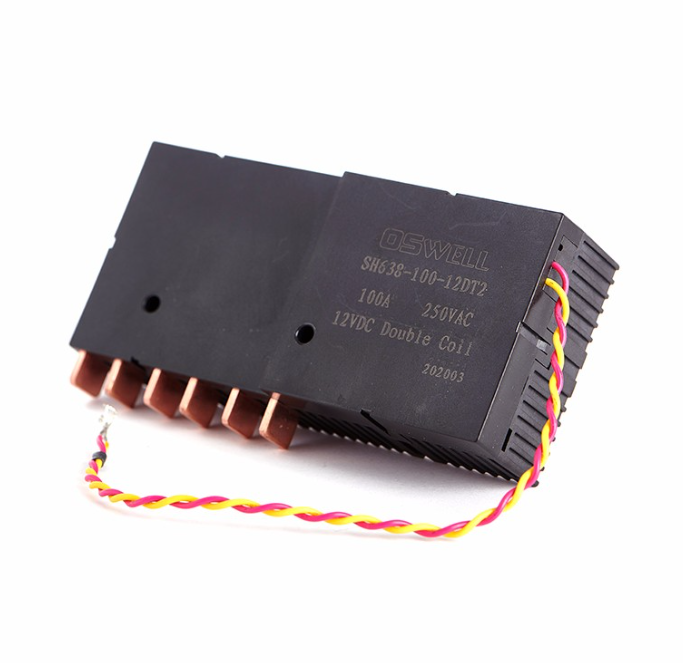

Count Cycles Properly And Monitor The Right Failure Indicators
A useful electrical life test is not just a counter that records operations until something obviously breaks. OMRON explains that relay durability ends when the relay no longer satisfies specified operating characteristics and performance. Its technical guidance gives common post-test criteria for items such as must-operate voltage, must-release voltage, operating time, release time, and contact resistance, and it also shows that contact resistance should be measured by the voltage-drop method with different test currents depending on the switched current range. That means life testing should include periodic checkpoints, not only a final cycle count.
For a magnetic latching relay, one complete electrical life cycle should normally reflect the real switching function of the application: set, carry the intended load, reset, and repeat. During the test, buyers should monitor at least these items: whether the relay still sets and resets correctly, whether contact resistance is rising, whether operating and release behavior is drifting, and whether contact welding, sticking, chatter, or abnormal heating begins to appear. OMRON’s application material lists worn contacts, welding, insulation deterioration, mechanical failure, and abnormal recovery behavior among the practical failure modes users encounter in relay use.
It is also important to define the load duty clearly in the report. Panasonic’s TX2-LT datasheet is a good example: it does not simply give one electrical-life number. It distinguishes resistive-load life from inrush-load life, states the switching frequency, specifies the current and voltage, and even identifies the inrush and steady-state current values in the inrush test. That is exactly how an electrical life test should be documented if the results are meant to support a real purchasing decision.

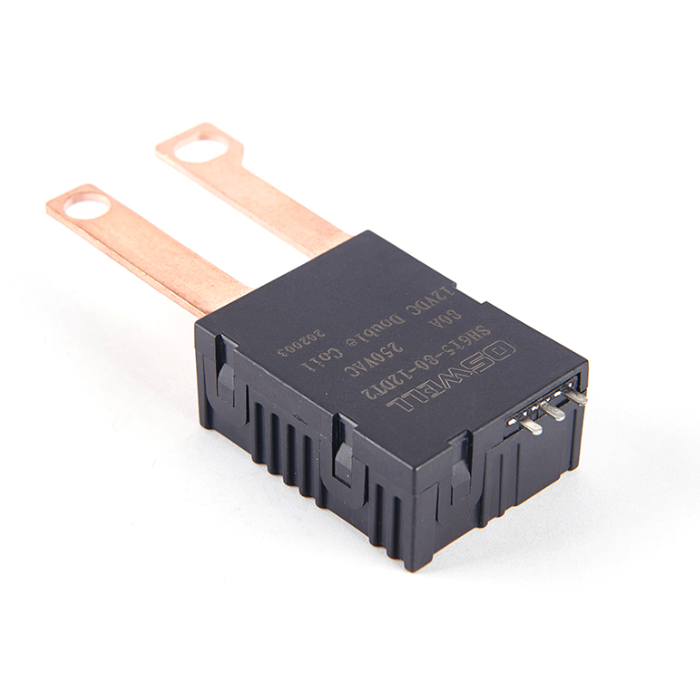

Judge The Result By Application Risk, Not By A Single Number
When buyers review electrical life data, the most common mistake is to treat the datasheet cycle number as a universal truth. It is not. OMRON says maximum switching capacity and durability curves are guidelines, and Panasonic says actual lifetime must be verified because it changes with load, frequency, phase, ambient conditions, and circuit design. A relay that survives 500,000 resistive cycles in the lab may behave very differently in a meter disconnect function, a capacitive input stage, or a DC inductive circuit with poor suppression.
The second mistake is to compare only piece-price and nominal life without looking at the target standard. For smart metering or disconnect applications, some latching relays are specifically promoted as meeting IEC 62055-31 fault-current and electrical-life tests under UC1, UC2, and UC3 categories. If the intended project is closer to prepaid metering or heavy disconnect duty, testing only a light resistive load may not tell you enough. In that case, the right life test is the one that reflects the application standard, not the easiest bench setup.
A better procurement approach is to ask three questions at the end of the test: Did the relay complete the required number of cycles under the real load profile? Did its key parameters remain inside acceptable limits throughout the test? And did the test method truly reflect the final product, including temperature, polarity, inrush, switching rate, and coil-drive behavior? If the answer to all three is yes, then the electrical life result is useful. If not, the cycle number alone is not enough to support a low-risk decision.
To test the electrical life of a magnetic latching relay properly, buyers should do more than repeat no-load set/reset pulses. They should build a test around the real load, real coil-drive method, real switching frequency, and real temperature conditions, then monitor contact resistance and operating characteristics as the cycles accumulate. The goal is not just to produce a big number. The goal is to learn whether the relay will still switch safely and predictably after the exact kind of stress the final product will impose.
