Retrofit Made Easy: Installing Split-Core CTs Without Disconnecting Mains Power
The Zero-Downtime Imperative: Why Non-Invasive Installation Wins

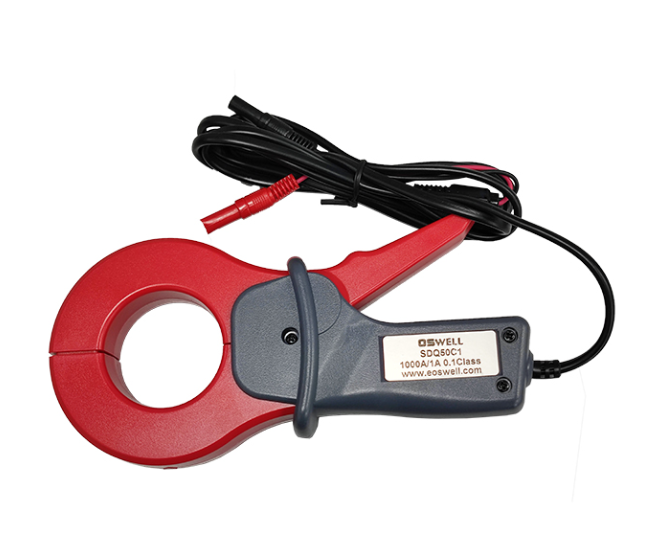

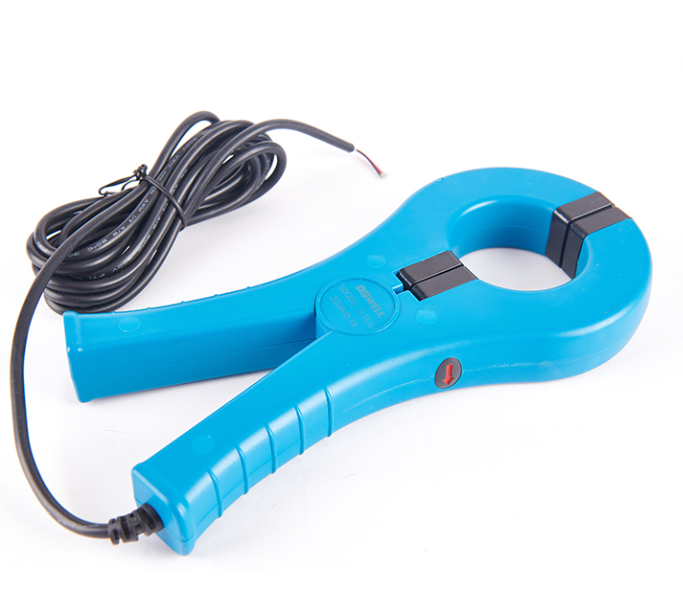

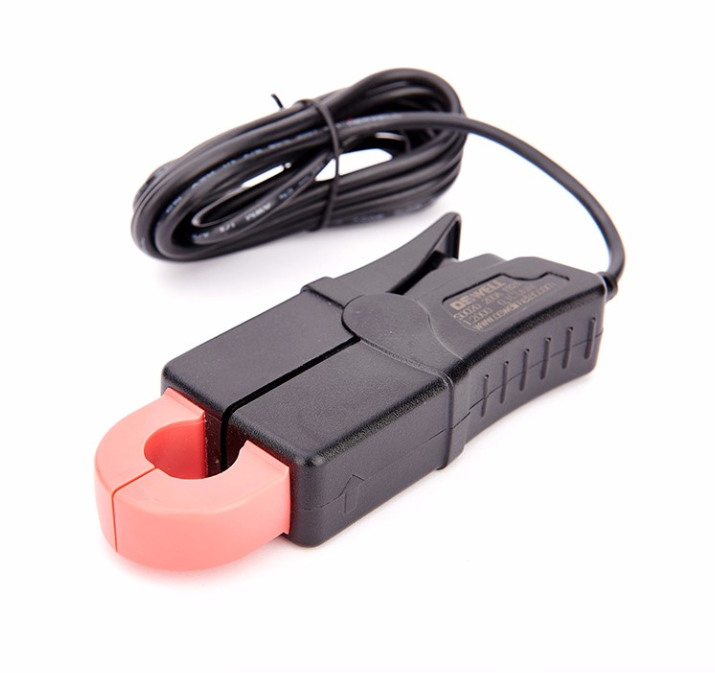

In today's 24/7 industrial, commercial, and data center operations, electrical system downtime is not just inconvenient—it is prohibitively expensive and often unacceptable. Traditional methods for installing permanent current monitoring sensors, such as solid-core current transformers, require de-energizing the circuit, cutting the conductor, and threading it through the CT's core. This process mandates a planned shutdown, disrupting production, services, and revenue. This is where the split-core current transformer provides a transformative solution. Its ingenious two-part hinged or separable core design allows it to be clamped directly around an existing, insulated, and live conductor. Installation can be completed in minutes without any need to interrupt power. This non-invasive, live installation capability is the single most critical feature for retrofit and upgrade projects, enabling the seamless addition of advanced energy metering, sub-metering, or power quality monitoring to any existing electrical panel or feeder without causing operational disruption. It turns a complex, high-risk logistical project into a simple, safe, and routine task.
Installation Best Practices: Safety, Accuracy, and Long-Term Reliability
While the concept is simple, proper installation is paramount to ensure safety, measurement accuracy, and long-term performance. The process follows a disciplined sequence. First, a thorough risk assessment and arc flash evaluation must be conducted for the specific panel. Technicians must wear appropriate personal protective equipment (PPE) rated for the working voltage. The split-core CT is then carefully positioned around the target insulated conductor. A key step is ensuring the two core halves mate perfectly and the latch or screw mechanism is fully secured, forming a closed magnetic loop. Any air gap or misalignment can introduce significant measurement error. The CT should be mounted stably to prevent vibration, and the secondary wiring (typically low-voltage signals like 0-5VAC or 0-1VAC) is routed safely away from power cables to avoid noise interference. High-quality split-core CTs from manufacturers like Oswell are engineered for this duty. They feature robust mechanical construction, precision-machined cores for minimal gap, and clear markings for polarity and rating. Following the manufacturer's instructions and using well-designed products ensures the retrofit provides accurate, reliable data for years to come, all achieved with zero operational interruption.
The Strategic Value: Unlocking Data for Modernization Without Disruption
The ability to install split-core CTs on live systems unlocks immense strategic value. It allows facility managers and energy auditors to rapidly deploy sub-metering networks to allocate energy costs to specific departments, processes, or tenants. It enables the modernization of legacy facilities with IoT-enabled energy management systems (EMS) and cloud-based monitoring platforms, providing real-time visibility into consumption patterns without rewiring the entire building. For preventive maintenance programs, it allows for the continuous monitoring of critical loads like chillers, pumps, and manufacturing lines to establish baselines and detect anomalies indicative of impending failure. This "retrofitability" is a core design consideration for leading component manufacturers. Companies like Oswell design their split-core CTs not only for high electrical accuracy (e.g., Class 0.5) but also for field-friendly features like compact size for tight panels, clear installation guides, and secure latching mechanisms. This empowers businesses to gain the data-driven insights needed for efficiency and reliability improvements, all as a straightforward upgrade rather than a costly, disruptive overhaul.
In conclusion, the split-core current transformer is more than just a sensor; it is the key enabler for a non-disruptive path to operational intelligence. It eliminates the single greatest barrier—planned downtime—to upgrading electrical monitoring in existing infrastructure. By choosing high-quality, precision-engineered split-core CTs from reliable manufacturers like Oswell, organizations can safely and efficiently retrofit advanced monitoring capabilities onto their live electrical systems. This empowers them to unlock critical data on energy usage, system health, and operational efficiency, driving informed decisions that reduce costs, enhance reliability, and support sustainability goals. For any retrofit or expansion project, specifying split-core CTs is the smart, strategic choice that delivers immediate value without the cost of stopping operations.
