1. The Design and Technical Superiority of Type 2 Connectors

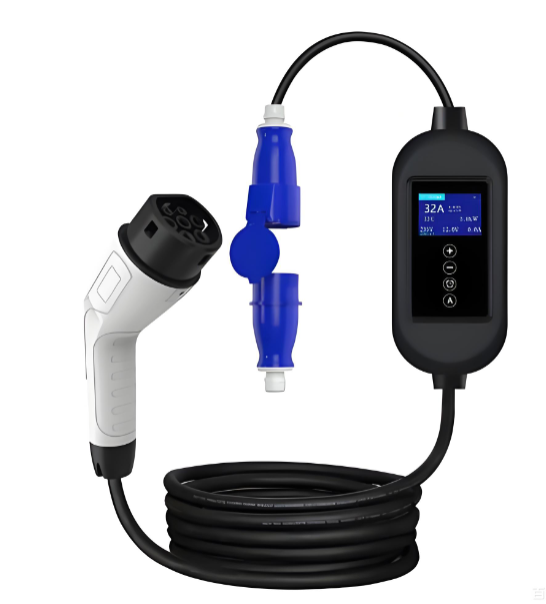

Type 2 charging guns, also known as Mennekes connectors, represent the European standard for EV charging, featuring a sophisticated design that supports both single-phase (up to 32A) and three-phase (up to 480V AC) power delivery. The connector incorporates seven pins—L1, L2, L3, N, PE, CP (Control Pilot), and PP (Proximity Pilot)—enabling smart communication between the vehicle and charging infrastructure. Constructed from engineering plastic rated UL94 V-0 flame retardant, these connectors ensure safety while withstanding over 10,000 mating cycles. The IP55 protection level when mated guarantees reliable operation in diverse weather conditions, making them ideal for both indoor and outdoor installations across Europe.
2. Application Scenarios: From Home Charging to Public Infrastructure

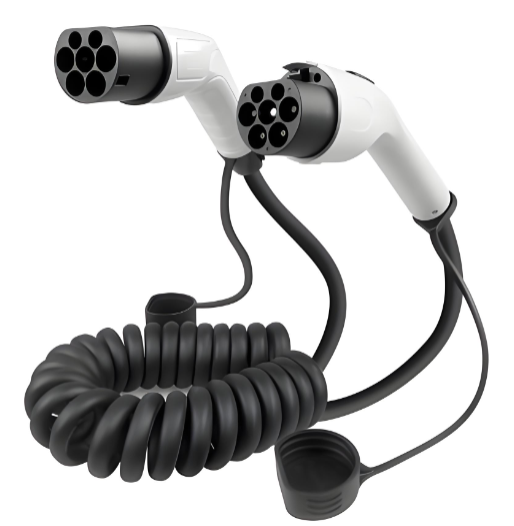

The versatility of Type 2 charging guns enables their deployment across multiple charging scenarios. For residential use, single-phase 32A configurations provide convenient overnight charging, while three-phase versions support faster charging for homes with appropriate electrical installations. In public charging stations, Type 2 connectors facilitate power delivery up to 22kW (three-phase 32A), significantly reducing charging times compared to standard household outlets. The helix cable versions with Type 2 connectors on both ends enable efficient charging station-to-station connections, particularly useful for fleet operations and public charging networks. These connectors also support smart charging features through CP and PP signals, allowing for authentication, power adjustment, and safety monitoring.
3. Compliance and Future-Readiness in the Evolving EV Landscape
Type 2 charging guns comply with IEC 62196-2 standards, ensuring interoperability across different EV models and charging equipment manufacturers. Their design incorporates future-ready features such as support for ISO 15118 protocols, enabling Vehicle-to-Grid (V2G) capabilities and Plug & Charge functionality. The connectors' mechanical lifetime exceeding 10,000 cycles, coupled with insertion force below 140N, ensures long-term reliability and user-friendly operation. As Europe moves toward standardized charging infrastructure, Type 2 connectors continue to evolve with enhancements in materials, safety features, and communication protocols, positioning them as a cornerstone of the continent's electrification strategy.
Conclusion
Type 2 charging guns have established themselves as the backbone of European EV charging infrastructure, combining technical sophistication with practical versatility. Their ability to handle both single-phase and three-phase power, coupled with robust safety features and smart communication capabilities, makes them indispensable for the continent's transition to electric mobility. As charging technology advances, Type 2 connectors will continue to evolve, maintaining their relevance in an increasingly electrified transportation ecosystem.
