Which Components Matter Most In Accurate And Stable Energy Metering Systems
Accurate metering is never created by one chip or one sensor alone. A stable energy metering system depends on the current path, the voltage path, the signal conversion chain, the switching element if disconnect is needed, and the mechanical/electrical stability of the entire layout. TI’s energy metering references show complete designs built around the full measurement chain, while CT and VT references show that burden and phase behavior still matter at the sensor level. Relay and shunt references show that switching endurance and thermal drift can affect long-term field performance just as much as nominal accuracy on day one.
The Current And Voltage Front End Sets The Accuracy Floor

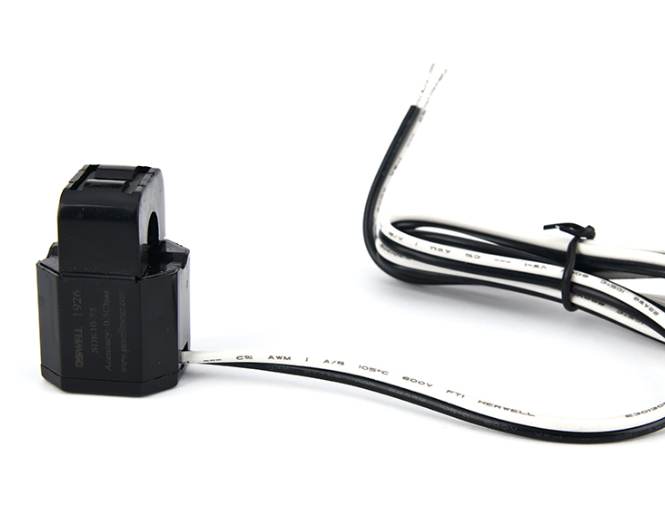

If the current and voltage front end is weak, the entire meter will inherit that weakness. CT phase error, burden, and linearity matter in AC metering. VT burden and accuracy class matter on the voltage side. If shunts are used, TCR and Kelvin connection matter. The front end determines how trustworthy the raw measurement is before any digital correction is applied. Buyers should treat the sensing front end as the foundation of the whole system.
Stability Depends On Components That Drift Or Wear

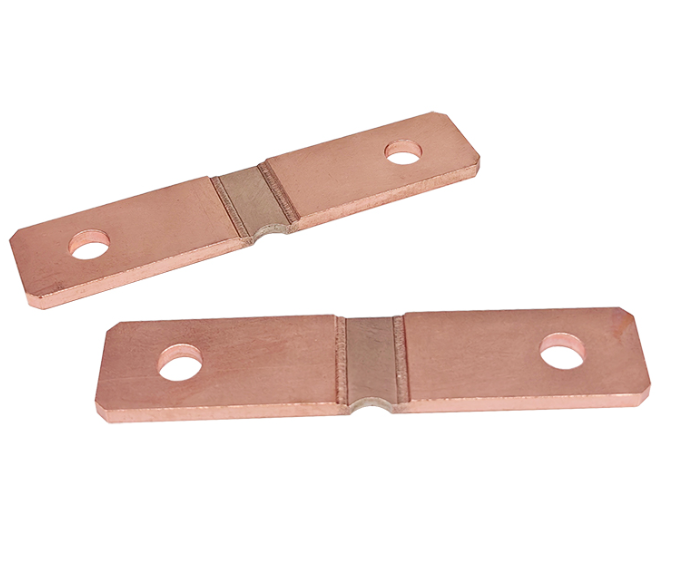

Meters fail in the field not only because of wrong architecture, but also because of drift and wear. Shunt resistors drift with temperature and long-term thermal stress. Relays wear under electrical duty and inrush. Magnetic sensors can drift over temperature and lifetime if the wrong precision class is selected. A meter that looks accurate in the lab may become less trustworthy over years if the selected components are not stable enough.
Integration Quality Turns Good Parts Into Good Systems
Good individual parts still need clean system integration. Meter input scaling, CT/VT programming, signal routing, relay drive timing, and thermal design all influence final performance. This is why metering reference designs are built as complete systems, not just lists of components. Buyers who focus only on individual component specifications may miss the interface quality that actually decides field performance.
The most important components in an accurate and stable energy metering system are the ones that control measurement truth, long-term stability, and interface quality. In other words, the sensing front end, the switching path, and the integration logic matter most together.
