Why Latching Relays Are Essential for Energy Metering Devices
Why Latching Relays Are Essential for Energy Metering Devices
Power Efficiency and Sustained State Control

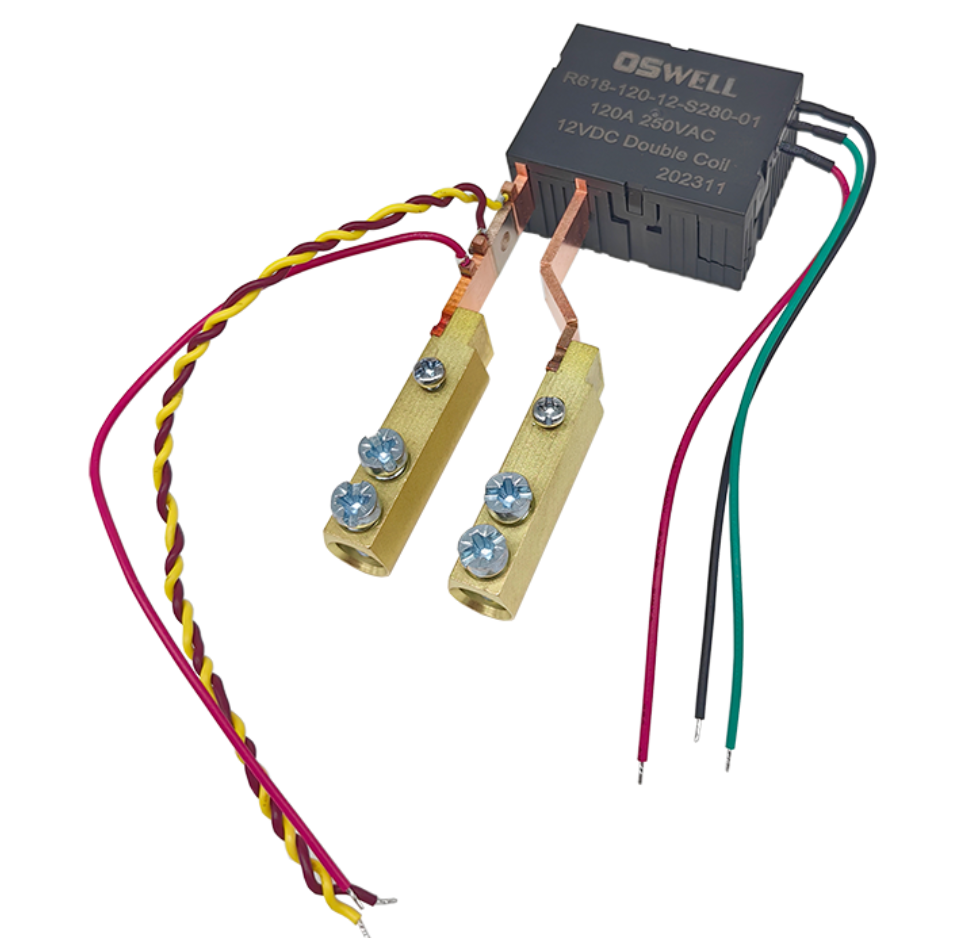

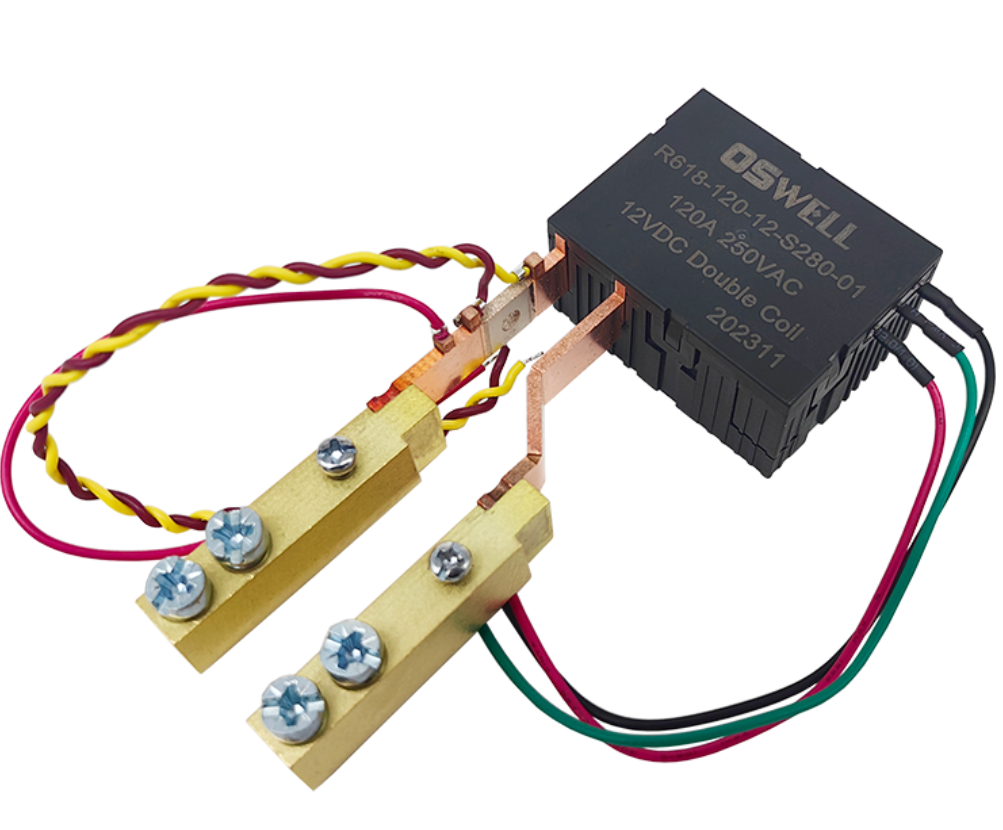

Latching relays are fundamental components in modern energy metering devices due to their unique bistable operation. Unlike standard relays that require a continuous coil current to maintain their state, latching relays only need a brief pulse signal to switch positions (open or closed). Once switched, they magnetically latch into place without drawing any additional power. This zero-power holding mechanism is crucial for battery-powered meters and applications where energy conservation is paramount. By eliminating the constant power drain associated with traditional relays, latching relays significantly extend the operational life of metering devices, reduce overall system power consumption, and prevent unnecessary heat generation within the meter enclosure. This makes them ideal for smart meters that need to operate reliably for years without external power or frequent battery replacements, ensuring accurate energy measurement with minimal energy waste.
Reliability and Precision in Tariff Switching and Load Control
The high reliability and position memory of latching relays make them indispensable for advanced metering functions like tariff switching and load control. In multi-tariff systems (e.g., differentiating between peak and off-peak electricity rates), the relay must switch the metering circuit accurately at specific times. A latching relay will maintain its state even during a power outage, ensuring correct tariff application immediately upon power restoration without needing a reset signal. This state retention capability prevents revenue loss for utilities and billing errors for consumers. Furthermore, their robust design, often featuring single-coil or dual-coil configurations, provides exceptional mechanical longevity (often exceeding 1 million operations) and stable contact resistance, which is vital for measurement accuracy. The precise control offered by manufacturers like Oswell ensures that these relays perform flawlessly in critical load disconnect functions, enhancing the safety and functionality of the metering system.
Safety and Cost-Effectiveness in Metering Applications
From a safety perspective, latching relays enhance metering device security by providing a stable, drift-free switching mechanism. Their latching design is inherently resistant to unintended state changes caused by power fluctuations or voltage spikes, which could lead to incorrect metering or unsafe load conditions. This inherent stability contributes to the overall safety compliance of the device. Economically, while the initial unit cost might be slightly higher, the total cost of ownership is significantly lower. The reduction in energy consumption over the meter's lifespan leads to substantial savings. Additionally, the extended operational life and reduced failure rate minimize maintenance and replacement costs. For meter manufacturers and utilities, using high-quality latching relays from reputable suppliers like Oswell translates into more reliable products, lower long-term operational expenses, and enhanced customer satisfaction.
Latching relays are not merely components but enablers of efficiency, accuracy, and reliability in energy metering. Their bistable operation ensures minimal power consumption, their inherent memory function guarantees accurate tariff application, and their robust design delivers long-term safety and cost savings. The integration of high-performance latching relays from specialized manufacturers like Oswell is, therefore, a critical design choice for developing next-generation metering devices that meet the evolving demands of modern energy management systems.
