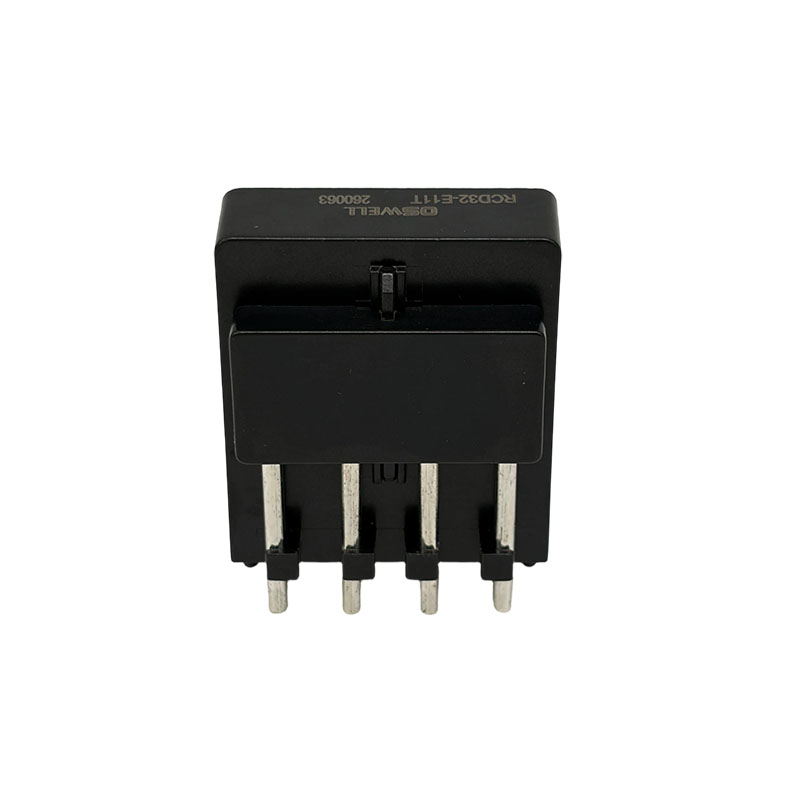

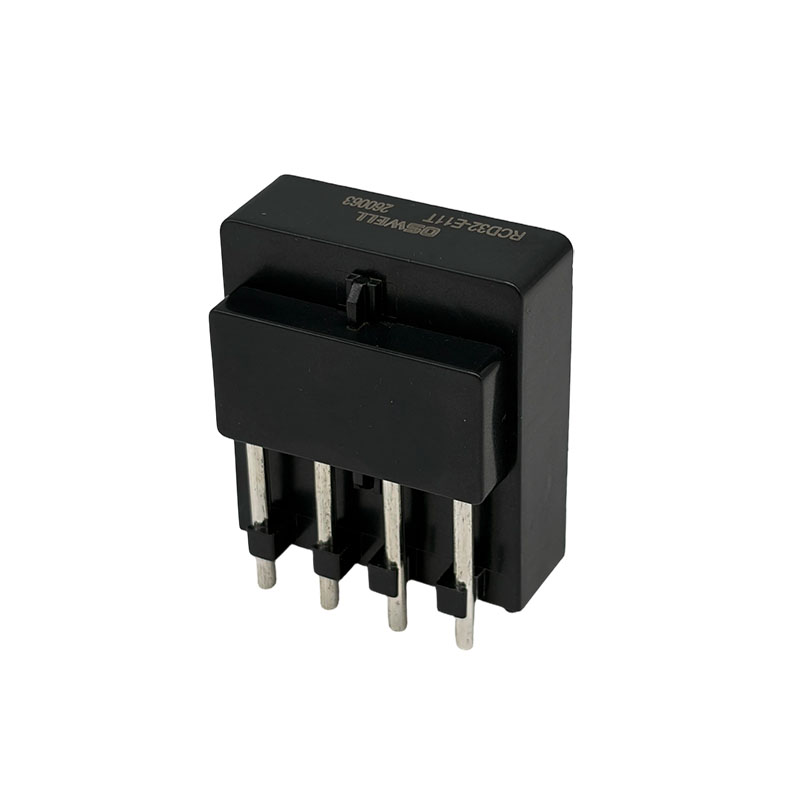

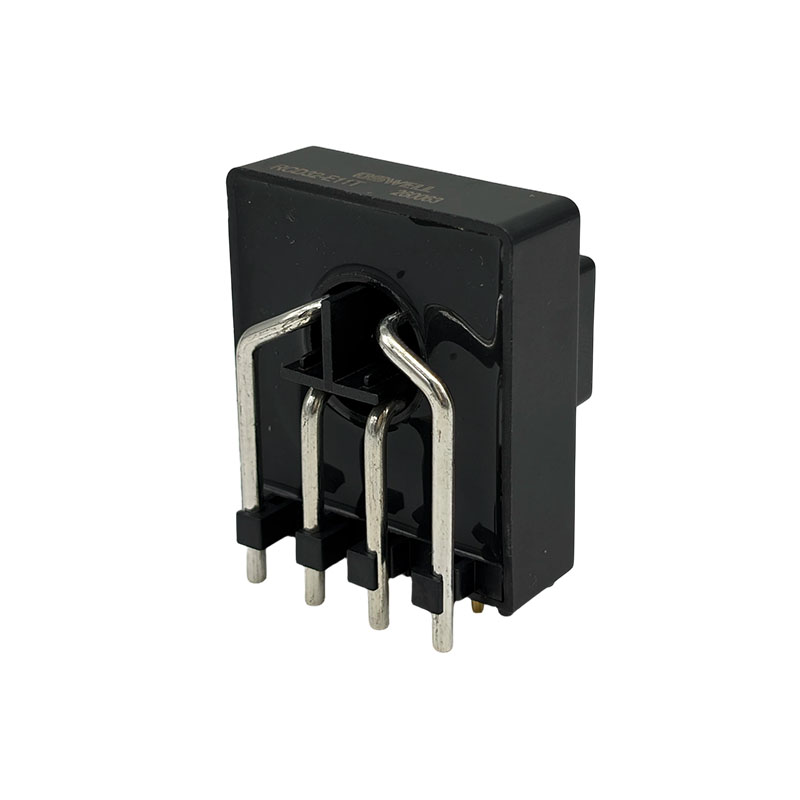

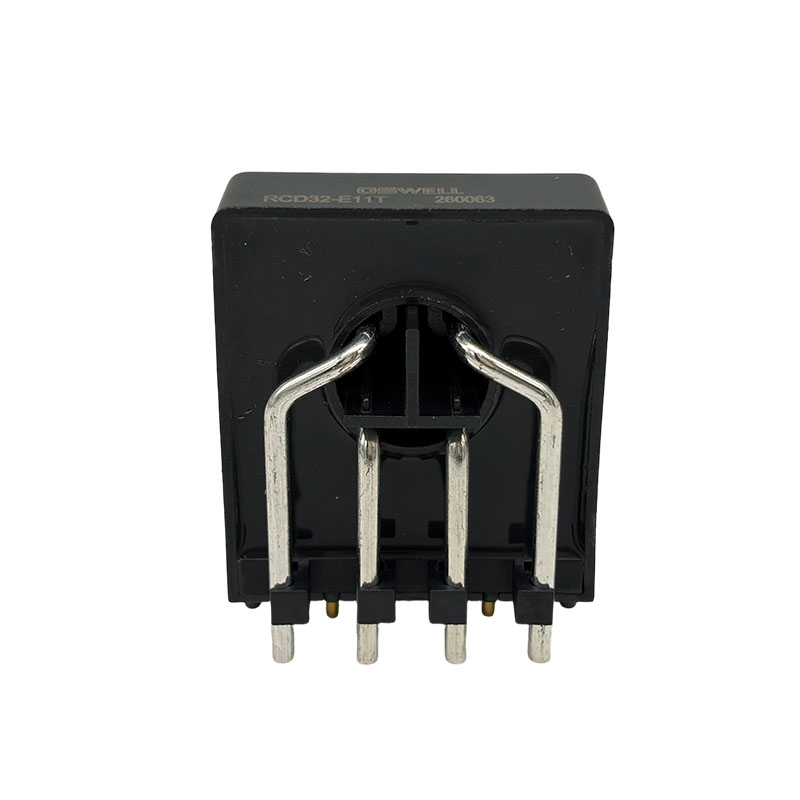

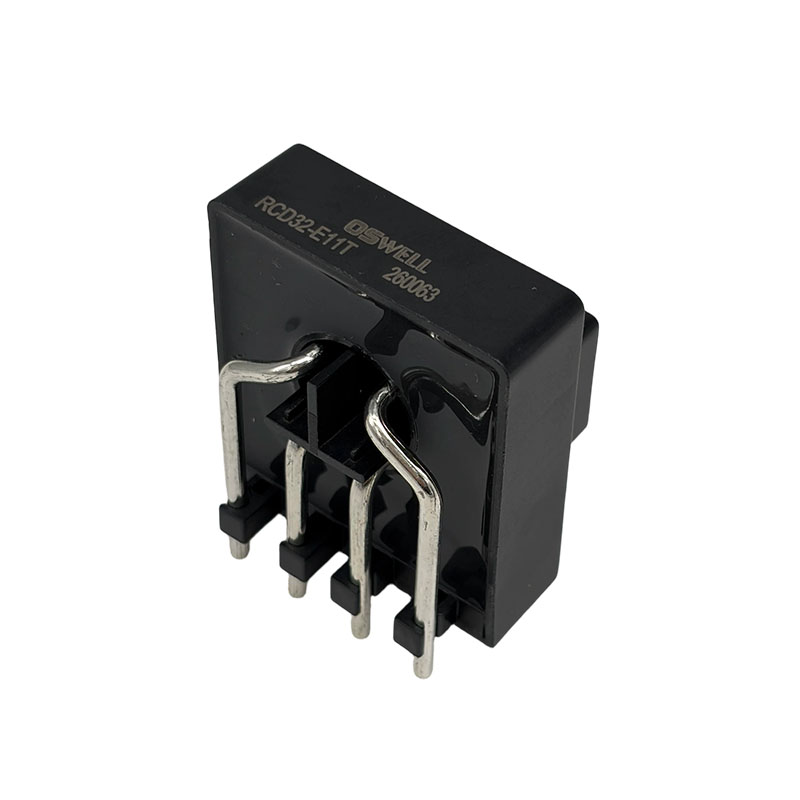

RCD32 E11T Type B Residual Current Sensor
RCD32 E11T Type B Residual Current Sensor is optimized for buyers who need reliable leakage current detection and power system monitoring in electrical equipment, EV charging, renewable energy, and industrial control projects. The updated fields clarify the sensor type, model direction, application value, and procurement keywords for overseas search.
RCD32 E11T Type B Residual Current Sensor technical overview
RCD32 E11T Type B Residual Current Sensor is organized for buyers comparing Power System Sensor for smart energy meters, current measurement, EV charging, meter cases, LCD modules, relays, terminals, and power monitoring projects. Review the existing product details and images below, then compare related Eoswell products for compatible sourcing options.
Trip-Current(residual current related characteristics)
| Wav. | Freq. | Min. | Typ. | Max. | Unit |
| AC | 50Hz | 21.0 | 23.0 | 24.0 | mA |
| A0 | 50Hz | 4.5 | 24.0 | 42.0 | mA |
| A90 | 50Hz | 6.3 | 24.0 | 42.0 | mA |
| A135 | 50Hz | 3.3 | 27.0 | 42.0 | mA |
| 2PDC | 50Hz | 3.5 | 5.2 | 7.0 | mA |
| 3PDC | 50Hz | 3.1 | 4.6 | 6.2 | mA |
| S-DC | - | 3.0 | 4.7 | 6.0 | mA |
| F | - | 15.0 | 35.0 | 42.0 | mA |
Electrical & Reliability Characteristics
Operating Temperature: -40℃~105℃
Storage Temperature: -40℃~105℃
Operating Humidity: ≤95%
Supply Voltage(VDD): 4.85~5.15VDC
Consumption: ≤110mW
Voltage Input,low level: 0~0.6VDC
Voltage Input,high level: 4.2~5VDC

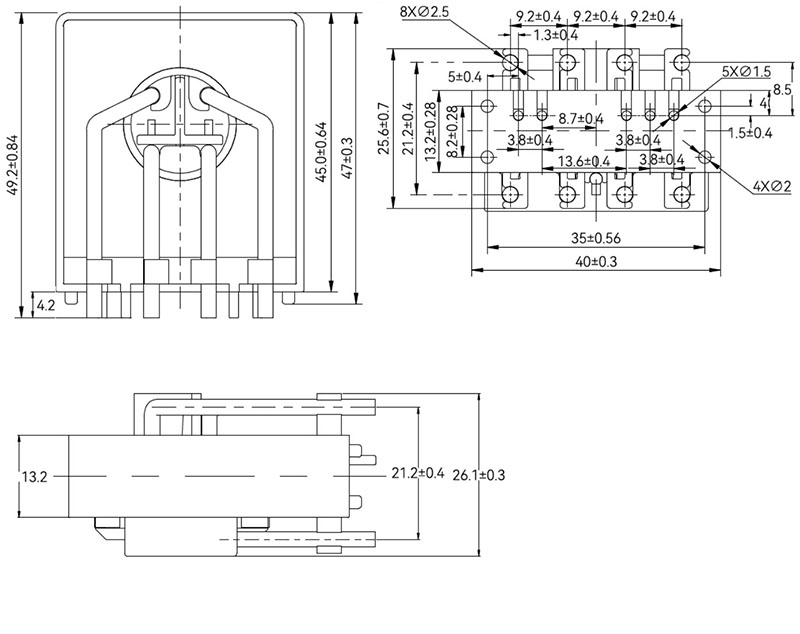

Dimension
Related Products OFT 50 Rogowski Coil Current Sensor For Power Monitoring OFT-240 Rogowski Coil Flexible Current Sensor For Power Monitoring OFR-150 Rogowski Coil Flexible Current Sensor For Power Monitoring
Frequently Asked Questions
What is a Type B residual current sensor?
It detects AC, pulsed DC and smooth DC residual currents, making it suitable for EV charging and variable-speed drives.
What rated currents are available?
A range of ratings. Request the datasheet for your application.
What output or interface does it provide?
Standard signal outputs configured to your monitoring system.
Where is it used?
EV chargers, industrial drives and installations that need Type A or Type B residual current monitoring.
Can it be customized?
Yes, aperture, rating and output can be configured.
What do you need for a quotation?
Rated current, type (A or B), aperture and quantity.
