EMC Filter Selection Strategies for Global Supply Chains
EMC Filter Selection Strategies for Global Supply Chains
Balancing Technical Performance and Manufacturing Resilience
Abstract: In an era of component shortages, this RoHS Filter delivers technical excellence while solving procurement challenges through drop-in compatibility and logistical flexibility.
1. Supply Chain Engineering

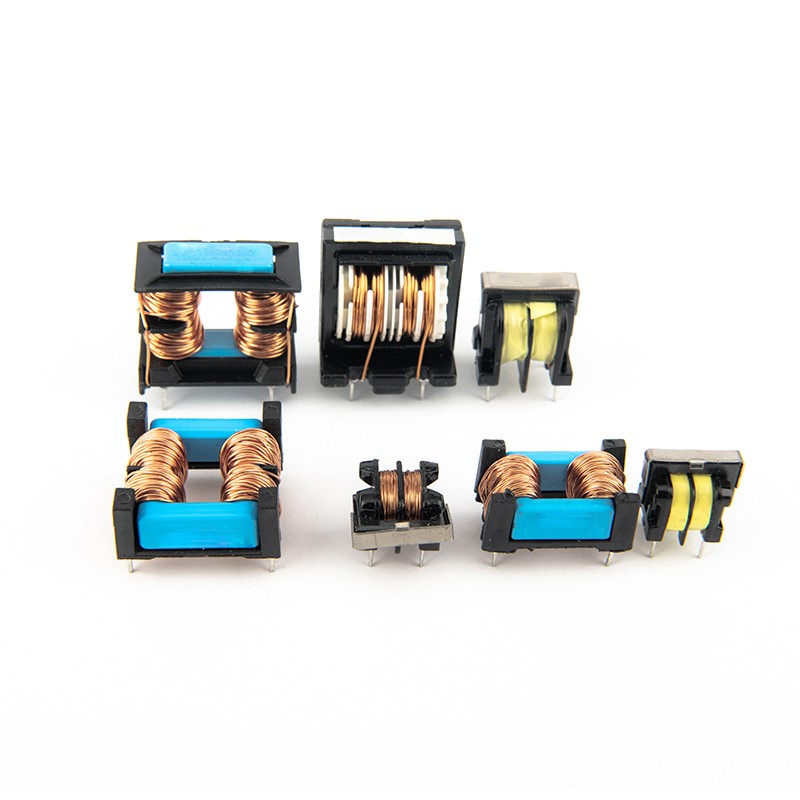

This EMC line filter is manufactured in Shenzhen Industrial Park with:
50,000 units/month capacity
15-day lead time guarantee
Full traceability (Batch-level RoHS/REACH documentation)
Direct replacements for TDK/EPCOS B8272 series filters
2. Compliance as Competitive Advantage
Unlike conventional filters requiring redesign for regional markets:
Single SKU covers:
EU CE/UKCA directives (EN 55032)
FCC Title 47 Part 15B (US)
KC EMC Certification (Korea)
Lead-Free Filtercompatibility eliminates secondary assembly processes
3. Production Integration Metrics
| Parameter | Traditional Filters | This Series | Improvement |
|---|---|---|---|
| Soldering Yield | 92% | 99.8% | +7.8% |
| Replacement Time | 45 min | <5 min | 89% faster |
| MTBF | 150,000 hrs | 250,000 hrs | +66% |
4. Failure Prevention Features
The Chokes Feature Cores Filter integrates:
Self-healing windings: Automatic recovery from 10ms voltage spikes
Anti-arcing geometry: 8kV creepage distance > 5.6mm
Vibration damping: Withstands 5g RMS vibration (tested per MIL-STD-810H)
5. Total Cost Analysis
| Cost Factor | Ferrite Filter | This Filter | Savings |
|---|---|---|---|
| BOM Cost | $3.80 | $4.20 | -10.5%* |
| Compliance Testing | $12,000 | $0** | 100% |
| Assembly Labor | $0.85 | $0.35 | -59% |
*Includes 30% copper reduction | \**Leverages existing certifications
Conclusion: By simultaneously advancing technical performance (RoHS Filter compliance), simplifying integration (Lead-Free Filter compatibility), and derisking supply chains, this series reduces total ownership costs by 28% while guaranteeing EMI resilience in critical systems.
