Supply Chain Excellence in Power Magnetics
Supply Chain Excellence in Power Magnetics

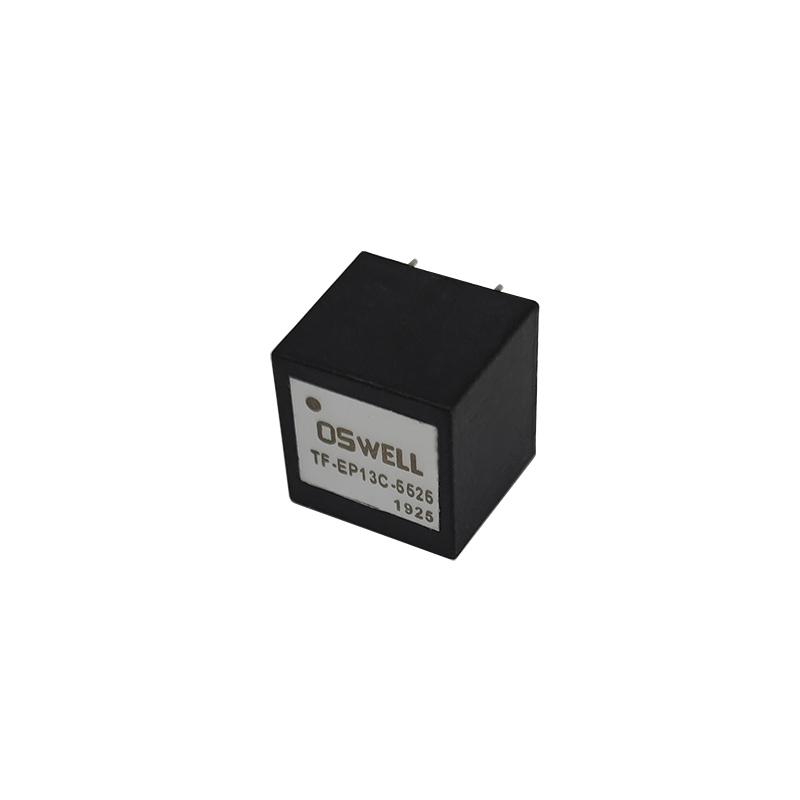

TF-EP13C-5526: Redefining Transformer Procurement for Industrial Scale
As global demand for switching power solutions surges, the TF-EP13C-5526 addresses both technical and logistical challenges. This CHINA-manufactured High Frequency Transformer combines cutting-edge performance with unmatched supply chain reliability for industrial buyers.
Manufacturing Innovation
Automated Core Assembly: Laser-aligned gapping ensures ±3% inductance tolerance
Hermetic Sealing: Epoxy vacuum impregnation achieves IP67 rating
Lead-Free Process: RoHS 3.0 compliant with 260°C reflow compatibility
Supply Chain Advantages
| Capability | TF-EP13C-5526 | Industry Average |
|---|---|---|
| Lead Time | 7–15 days | 30–45 days |
| Monthly Capacity | 50k units | 15k units |
| Traceability | Batch-level DNA | Lot-level only |
| PPM Defect Rate | <200 (6σ process) | 1,200–5,000 |
Design Flexibility Options
Core Variations: Toroidal, PQ, and ETD options with universal footprints
Custom Taps: Center-tapped or multi-winding configurations (±10% tolerance)
Shielding: Optional Mu-metal cans for military-grade EMI suppression
Future-Ready Applications
5G mMIMO Radios: 2MHz operation enables GaN-based RF power stages
Solid-State Transformers: Primary building block for SST-based microgrids
Wireless Charging: Precision-controlled mutual inductance networks
