How To Choose A Current Transformer That Improves Smart Meter Accuracy
How To Choose A Current Transformer That Improves Smart Meter Accuracy
In smart meter design, the current transformer is one of the most important components influencing measurement accuracy. A well-selected CT helps the meter achieve more stable current sampling, better low-current performance, smoother calibration, and stronger long-term consistency in real operating conditions. A poor CT choice, however, can create hidden error sources, drift risk, and unstable batch performance. This guide explains how to choose a current transformer that genuinely improves smart meter accuracy rather than only appearing suitable on paper.
1. Why Current Transformer Selection Directly Affects Smart Meter Accuracy

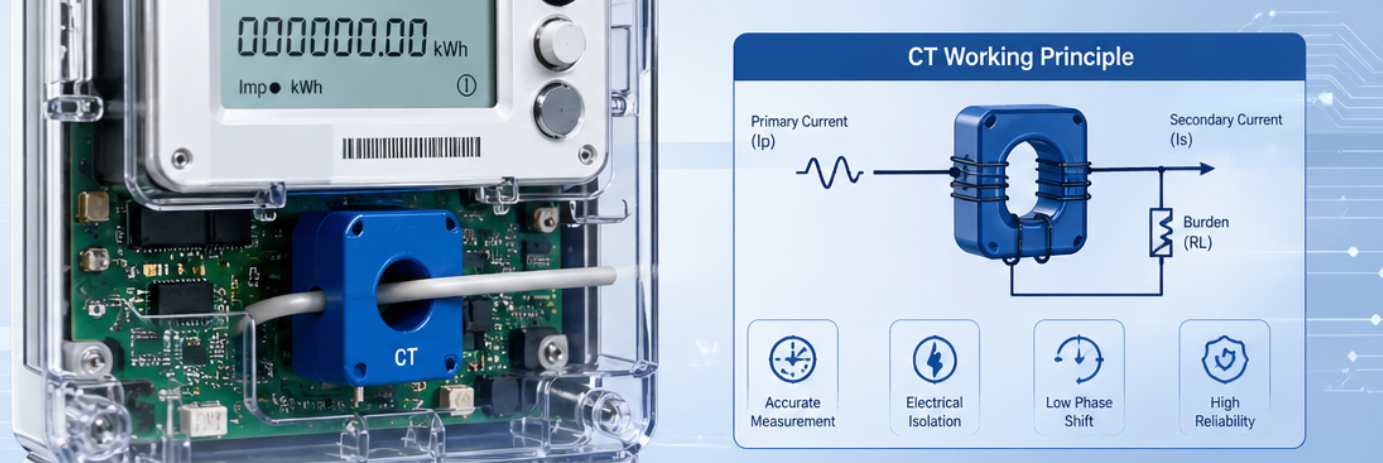

In a smart meter, the current transformer is responsible for converting the primary current into a secondary signal that the metering system can process accurately. If this conversion is not stable, the meter may show inconsistent readings across different load conditions, especially at low current points or when the operating environment changes. That is why the CT should not be treated as a simple standard part. It is a key accuracy component that influences the overall quality of the meter.
Many project teams focus first on nominal current rating, but accuracy improvement depends on more than rated current alone. A suitable CT should support stable ratio behavior, predictable linearity, good repeatability, and proper matching with the meter’s burden and sampling circuit. If one of these conditions is not well controlled, the meter may become harder to calibrate and more vulnerable to measurement drift later in production or field use.
Another important point is that smart meters do not work in one ideal operating state. They must measure current over a range of real use conditions, including low load, normal load, and sometimes overload situations. A CT that performs well only at one test point may not actually improve final meter accuracy. The better CT is the one that helps the meter remain stable across the full intended operating range.
For this reason, choosing a CT for better meter accuracy means choosing a component that supports stable signal conversion, practical circuit integration, and consistent long-term behavior. The goal is not only good initial data, but reliable measurement performance throughout the product life cycle.
2. What To Check If You Want Better Meter Accuracy
The first thing to check is performance across the actual measurement range. Smart meter accuracy depends heavily on how the CT behaves not only at nominal current, but also at low current and transitional operating points. In many metering applications, these areas are where hidden weaknesses appear. A CT that maintains more stable behavior across the working range will usually contribute more to final meter accuracy than one that only performs well at a single standard point.
The second factor is ratio and linearity stability. The ratio should fit the meter design properly, but just as important is whether the CT output changes in a predictable and smooth way as current changes. Good linearity makes calibration easier and improves confidence that the meter will behave consistently in real use. If linearity is weak or unstable, the meter may require more compensation and still show inconsistent results later.
The third factor is burden matching. A current transformer can only deliver its intended performance if the secondary side is matched well with the meter circuit. If the burden is not appropriate, the actual behavior of the CT may differ from what the specification suggests. For this reason, engineers should evaluate the CT together with the metering IC input, signal path, and surrounding circuit rather than judging the component in isolation.
Temperature stability also matters. Smart meters often work for years in variable environments, and even modest temperature shifts can affect long-term consistency if the CT is not well designed for stable operation. A component that keeps its behavior more consistent under thermal change can help reduce drift risk and support stronger accuracy retention over time.
Finally, teams should consider batch consistency. In smart meter projects, a technically good CT is not enough if performance varies too much from unit to unit. Better meter accuracy in mass production depends on a supplier’s ability to keep the magnetic core, winding process, dimensional tolerance, and final inspection stable across batches. This is one of the most practical but most overlooked parts of CT selection.
| Selection Factor | Why It Matters For Accuracy | What To Review |
|---|---|---|
| Low-Current Performance | Affects meter stability at sensitive measurement points | Behavior at low load, repeatability, usable signal stability |
| Ratio Fit | Determines whether signal conversion matches the meter design | Actual current range, circuit target, sampling compatibility |
| Linearity | Supports smooth performance across the operating range | Output consistency from low to high current points |
| Burden Matching | Influences real circuit behavior and final metering quality | Secondary load condition, meter input path, circuit interaction |
| Temperature Stability | Helps reduce long-term drift risk | Thermal consistency, drift tendency, operating robustness |
| Batch Consistency | Improves calibration stability in mass production | Unit-to-unit repeatability, process control, inspection stability |
3. How To Make A Better CT Decision For Accuracy Improvement
The most useful approach is to start with the meter application rather than with a general product list. Teams should define the current range, accuracy target, meter structure, sampling path, and expected operating environment first. Once those conditions are clear, it becomes much easier to judge whether a CT will truly help improve final meter accuracy or only look attractive in a specification sheet.
Sample evaluation should also be system-based. A current transformer should be tested with the actual smart meter circuit or with conditions very close to the final design. This helps show how the CT behaves in relation to burden, calibration logic, signal processing, and temperature change. Many hidden issues only appear when the CT is tested in the real system instead of in isolation.
Supplier capability matters just as much as component specification. A CT that improves meter accuracy in one or two samples may still become a problem if mass-production quality is not stable. Engineers and buyers should therefore review not only technical data, but also manufacturing control, inspection repeatability, and the supplier’s ability to keep electrical performance consistent across batches.
Another practical consideration is to avoid over-focusing on one single parameter. A CT with an acceptable ratio but weak linearity may still reduce final accuracy. A CT with strong nominal accuracy but poor batch consistency may still create calibration problems. The best choice usually comes from balancing multiple factors that together support stable meter performance.
The right current transformer is therefore the one that helps the smart meter measure more accurately not just in theory, but in real design, real production, and real field conditions. When the selection process is built around practical meter accuracy instead of isolated specification values, the result is usually much stronger.
Conclusion
Choosing a current transformer that improves smart meter accuracy requires more than checking the rated current or a single accuracy claim. The right CT should support stable low-current behavior, suitable ratio matching, good linearity, proper burden compatibility, temperature stability, and strong batch consistency. When these factors are evaluated together in the context of the real meter design, project teams can make better CT decisions, reduce calibration complexity, and build smart meters with more reliable long-term measurement performance.
