In smart meter design, selecting the right current sensing method is a critical decision. Two of the most widely used solutions are the shunt resistor and the current transformer. Both can support current measurement, but they work in different ways and perform differently in terms of cost, isolation, integration, thermal behavior, accuracy stability, and long-term application fit. This guide explains the key differences between shunt resistors and current transformers and helps engineers, buyers, and project teams choose the better option for specific smart meter designs.

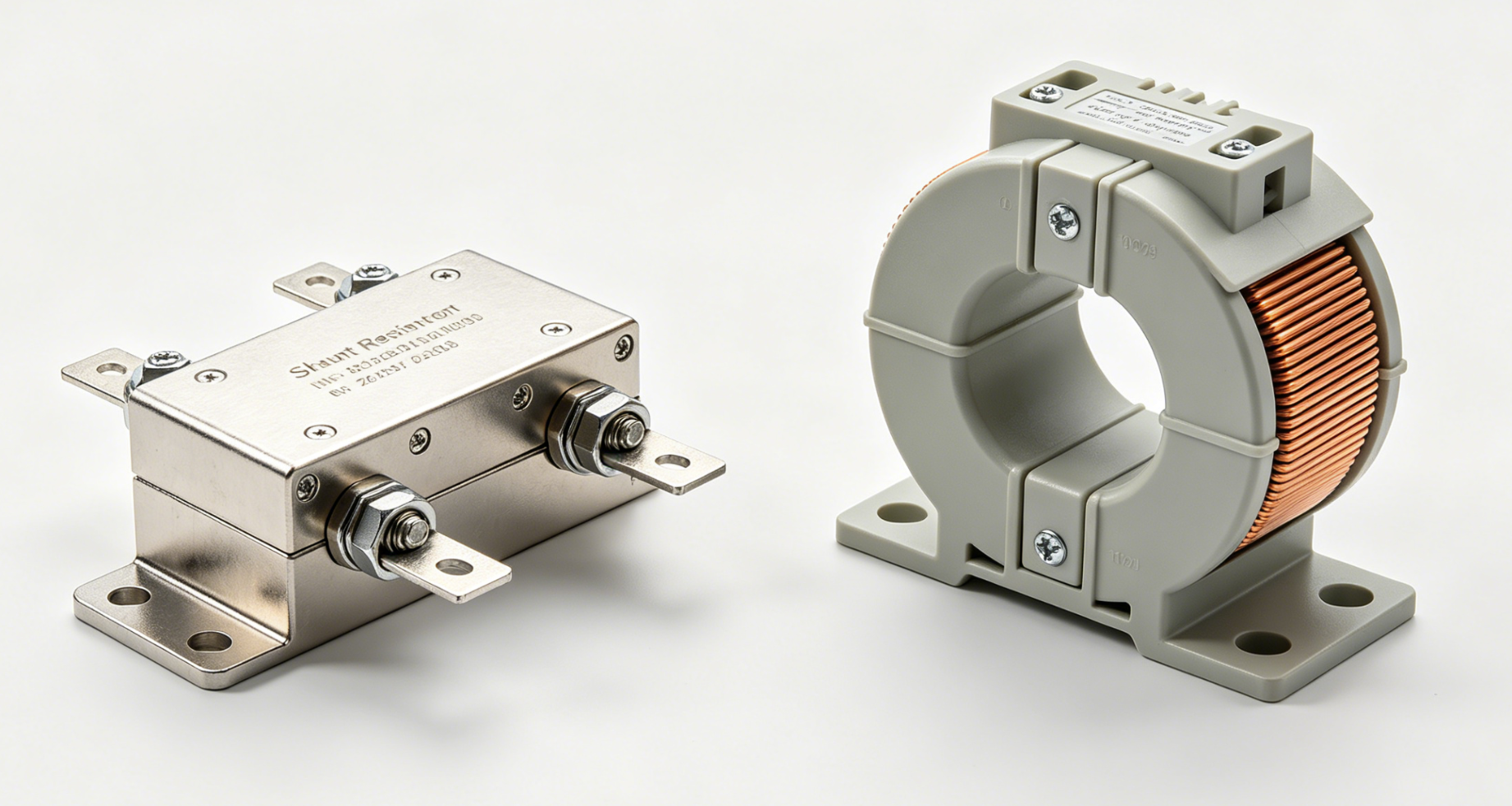

1. How Shunt Resistors And Current Transformers Differ In Smart Meter Design

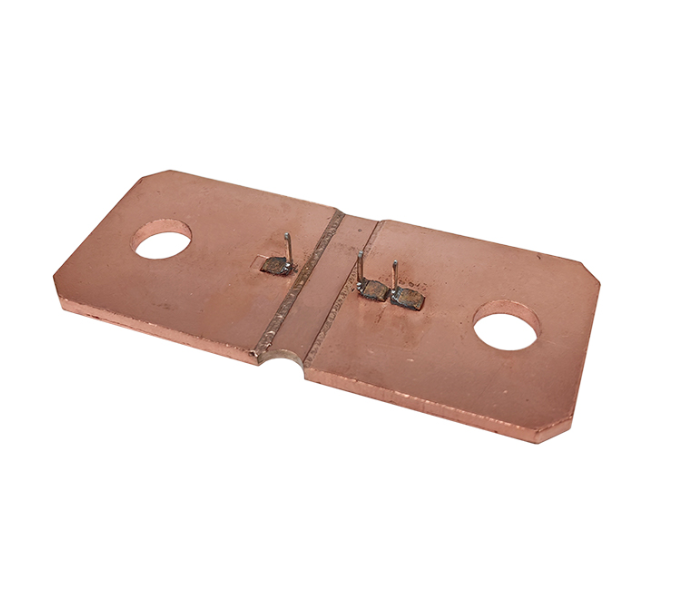

A shunt resistor measures current by creating a small voltage drop across a precision resistance element. The meter reads this voltage and converts it into current information. This method is direct, structurally simple, and often attractive for compact smart meter designs where cost efficiency and straightforward integration are important. Because the shunt is a resistive element rather than a magnetic component, it can be easier to integrate into some electronic architectures.
A current transformer works differently. It senses current through electromagnetic induction and provides an isolated secondary signal that can be processed by the metering circuit. In smart meter applications, this structural difference changes not only the sensing method but also the overall system design logic. A CT can offer advantages in isolation, magnetic coupling, and adaptation to certain meter architectures, while a shunt resistor often stands out for simplicity and economy.
Because these two solutions are based on different sensing principles, the better option depends heavily on the target meter type. A design focused on compactness, direct current sensing, and cost-sensitive volume production may lean toward a shunt resistor. A design that places stronger emphasis on isolation, magnetic sensing structure, and specific system-level requirements may benefit more from a current transformer.
The key point is that neither option is universally better. The better choice depends on what the smart meter needs to achieve in actual operation, manufacturing, and long-term field use. The selection should therefore be based on application fit rather than component popularity alone.
2. Key Differences In Cost, Isolation, Thermal Behavior, And System Fit
Cost is one of the first factors many project teams compare. In many smart meter designs, a shunt resistor is seen as a more economical solution, especially in applications where direct sensing can be implemented efficiently. For high-volume, price-sensitive meter programs, this can be a strong advantage. However, cost should not be evaluated in isolation. A lower component cost does not automatically mean a lower total system cost if it increases thermal design difficulty or imposes additional requirements on the metering electronics.
Isolation is another major difference. A current transformer naturally supports an isolated sensing path because of its electromagnetic working principle. This can be valuable in smart meter designs where insulation structure, safety considerations, or system separation are especially important. A shunt resistor, by contrast, is a direct conductive element and therefore needs to be considered within the broader circuit safety architecture. In some meter platforms, this is manageable and efficient. In others, the CT structure may be more suitable.
Thermal behavior also deserves careful attention. Because a shunt resistor conducts current directly, it can introduce heat that must be managed properly inside a compact meter enclosure. This affects not only the shunt itself but also surrounding components and long-term measurement stability. A current transformer generally follows a different thermal profile and may offer advantages in designs where direct conductive heating is a concern. The right choice depends on the load profile, enclosure space, and thermal control strategy of the smart meter.
From a system fit perspective, shunt resistors are often easier to understand from a direct signal standpoint, but they also require careful control of resistance stability, temperature influence, and layout interaction. Current transformers may be physically larger in some cases, but they can provide benefits in electrical isolation, system robustness, and compatibility with certain metering structures. The better option is the one that fits the meter’s electrical architecture, dimensional constraints, and long-term performance target most effectively.
For this reason, smart meter designers should avoid making the decision based only on one parameter such as cost or size. The real comparison must include current range, safety design, thermal conditions, system topology, and mass-production consistency.
| Comparison Item | Shunt Resistor | Current Transformer |
|---|---|---|
| Working Principle | Measures current through voltage drop across resistance | Measures current through electromagnetic induction |
| Cost Orientation | Often more economical in cost-sensitive designs | May suit designs where structural advantages justify the choice |
| Isolation Characteristic | Depends on broader circuit architecture | Naturally supports isolated sensing structure |
| Thermal Consideration | Requires careful heat management in compact meters | Different thermal profile, often less direct conductive heating impact |
| Design Integration | Simple direct sensing, strong fit for some compact designs | Fits designs needing magnetic sensing and isolation-oriented architecture |
| Selection Focus | Economy, resistance stability, thermal control, layout match | Isolation, ratio behavior, structural fit, long-term consistency |
3. Which Is Better For Your Smart Meter Project
A shunt resistor may be the better choice when the smart meter project is highly cost-sensitive, the design can manage thermal influence effectively, and the electrical architecture is well suited to direct current sensing. In these cases, the shunt can provide a practical balance of economy, compactness, and measurement capability, especially for meter designs where direct sensing is already well understood by the engineering team.
A current transformer may be the better choice when the project places stronger emphasis on isolation, magnetic sensing structure, and a meter architecture that benefits from transformer-based current measurement. It can also be a stronger fit when the design target includes higher system robustness in demanding conditions or when the engineering team prefers a CT-based metering path that aligns with the full product platform.
Another important factor is production consistency. In large smart meter programs, both shunt resistors and current transformers must deliver stable batch-to-batch quality. A theoretically good sensing method can still become a problem if the supplier cannot maintain dimensional control, resistance stability, winding consistency, or reliable inspection standards. This is why the selection should include both component suitability and supplier capability.
System-level validation is also essential. Teams should compare sample behavior inside the actual meter design rather than relying only on isolated component specifications. That means checking not only measurement performance, but also heat behavior, layout impact, calibration process, safety structure, and long-term operating stability. A better decision usually comes from full application testing rather than from catalog comparison alone.
Ultimately, the better option is the one that best matches the real smart meter design target. For some projects, that will be a shunt resistor. For others, it will be a current transformer. The strongest decision comes from matching the sensing method to the meter’s cost goal, electrical structure, thermal environment, and long-term reliability requirement.
Conclusion
Shunt resistors and current transformers each offer valuable advantages for smart meter design, but they serve different design priorities. Shunt resistors often stand out for economy, direct sensing, and compact integration. Current transformers often stand out for isolation, magnetic sensing structure, and suitability in certain robust metering architectures. The better choice depends on the actual meter platform, including cost target, thermal strategy, safety structure, integration method, and long-term reliability goals. By evaluating both sensing methods from a full system perspective, smart meter developers can make a more practical and more reliable design decision.
