5014000070 14kW European Standard AC Control Board
5014000070 is the main control board unit of AC dual-charger. The power supply of the main board adopts a highly reliable integrated AC DC module. It supports various charging methods such as plug-and-charge, card swiping, and scanning code. It contains a dual-channel high-precision measurement unit, supporting multiple time periods and multiple rates of charging mode. It integrates various protection functions such as emergency stop detection, door open detection, overvoltage, undervoltage, overcurrent, undervoltage, CP break pin, and CP grounding.
5014000070 14kW European Standard AC Control Board
Features:
Equipped with 485 and 232 communication interfaces, support a variety of communication protocols;
Supports two networking modes of Ethernet and 4G (optional), it has the function of background communication which can remotely monitor the main control board through the background;
Supports connecting to mainstream platforms in many regions around the world through OCPP1.6 protocol
It has a variety of protection functions such as integrated emergency stop detection, door open alarm, overvoltage, undervoltage, overcurrent, undervoltage, leakage detection, CP disconnection needle, CP grounding;
Support Diven serial screen;
Built-in three-phase high precision metering chip, can also be connected to the external electricity meter measurement, support DL/T645-2007 communication protocol;
Supports a variety of start methods such as plug and charge, card swipe start, scan code start, and reservation charging;
Lightweight, easy to install, high integration, stable performance, powerful function;

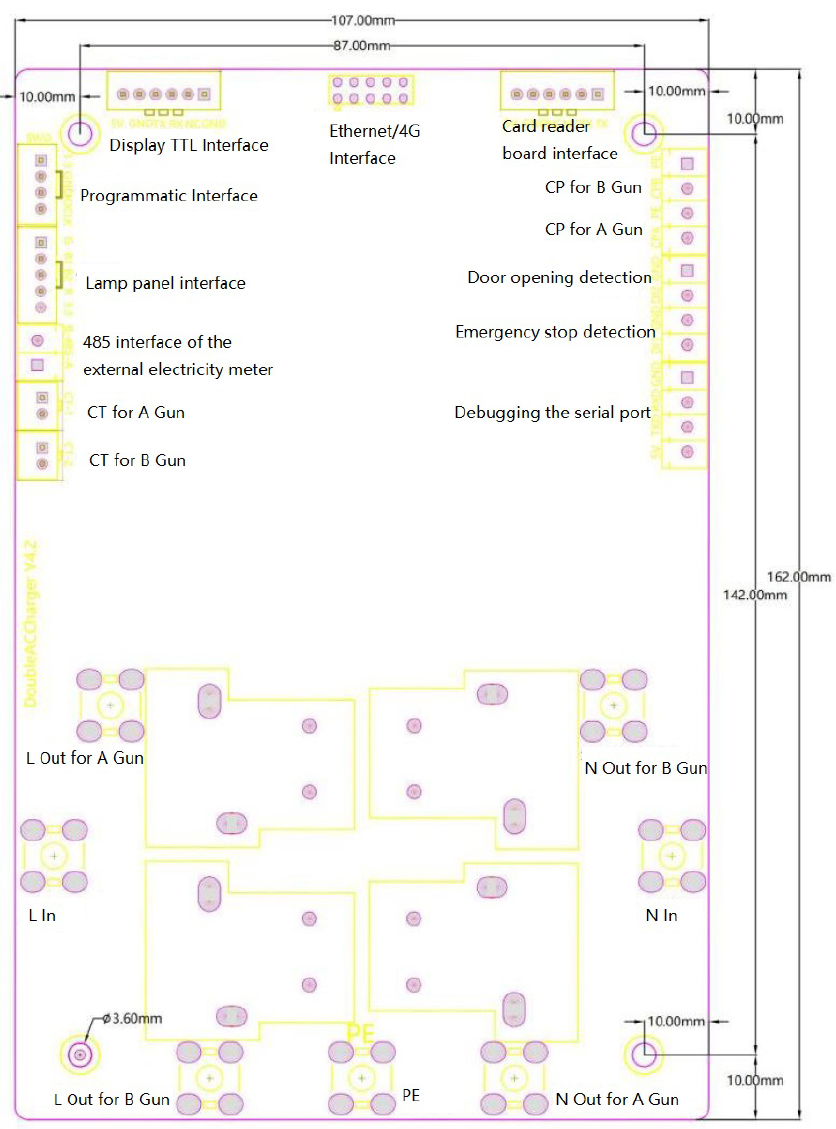

Module size: 162 mm*107 mm.
