ac control board

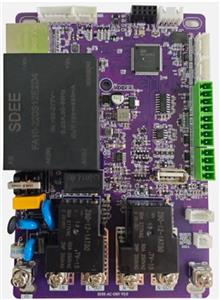

5014000070 is the main control board unit of AC dual-charger. The power supply of the main board adopts a highly reliable integrated AC DC module. It supports various charging methods such as plug-and-charge, card swiping, and scanning code. It contains a dual-channel high-precision measurement unit, supporting multiple time periods and multiple rates of charging mode. It integrates various protection functions such as emergency stop detection, door open detection, overvoltage, undervoltage, overcurrent, undervoltage, CP break pin, and CP grounding.

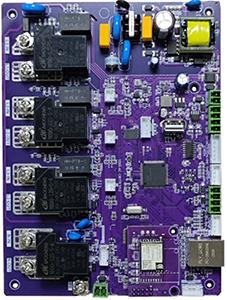

5014000040 includes a high-precision metering unit and supports multi-period and multi-tariff billing modes. It integrates various protection functions including emergency stop detection, door open detection, overvoltage, undervoltage, overcurrent, undercurrent, CP pin disconnection, and CP grounding. It also supports the latest national standard Type A + DC 6mA leakage detection function and voice broadcast function.

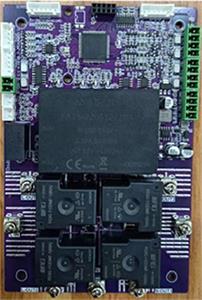

5014000050 includes a high-precision metering unit and supports multi-period and multi-tariff billing modes. It integrates various protection functions including emergency stop detection, door open detection, overvoltage, undervoltage, overcurrent, undercurrent, CP pin disconnection, and CP grounding. It also supports the latest national standard Type A + DC 6mA leakage detection function and voice broadcast function.
