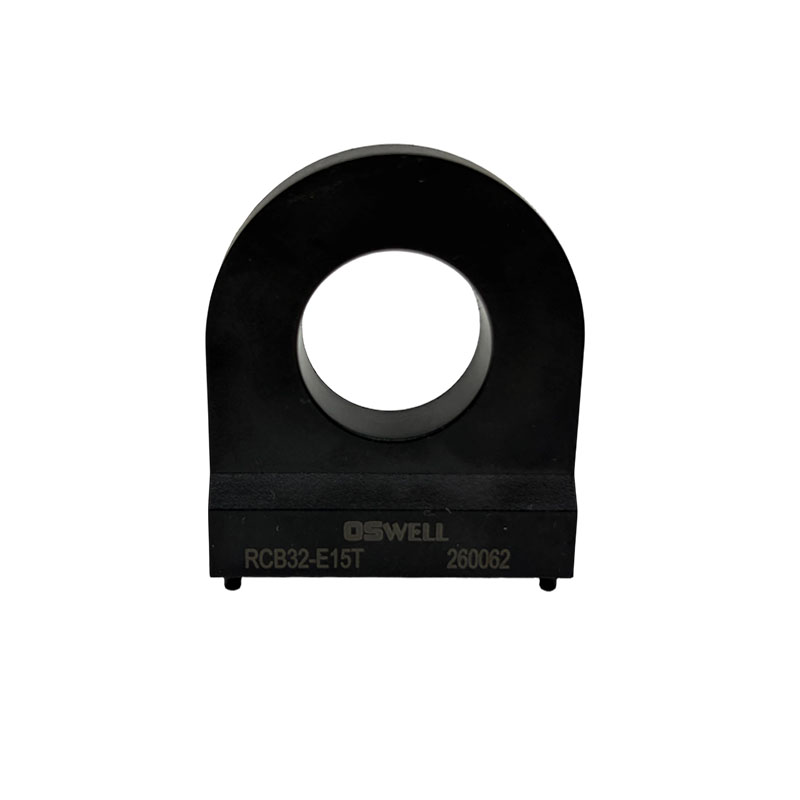

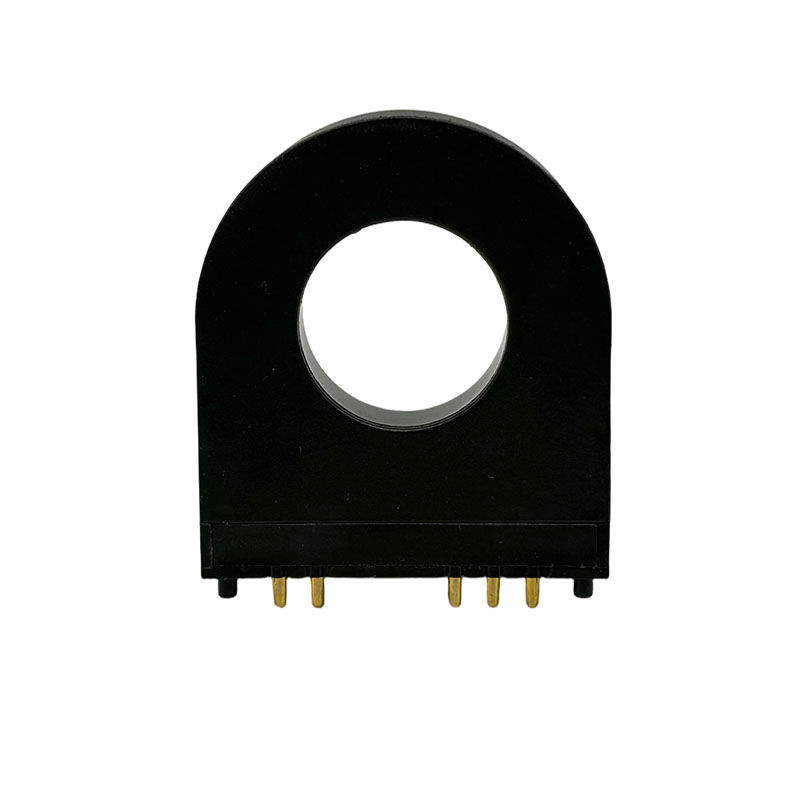

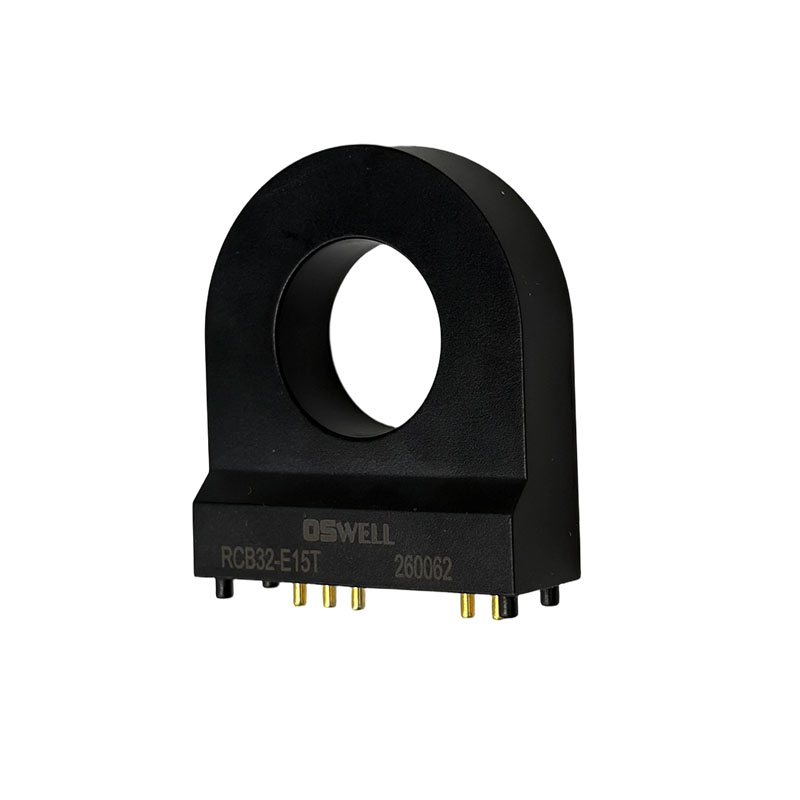

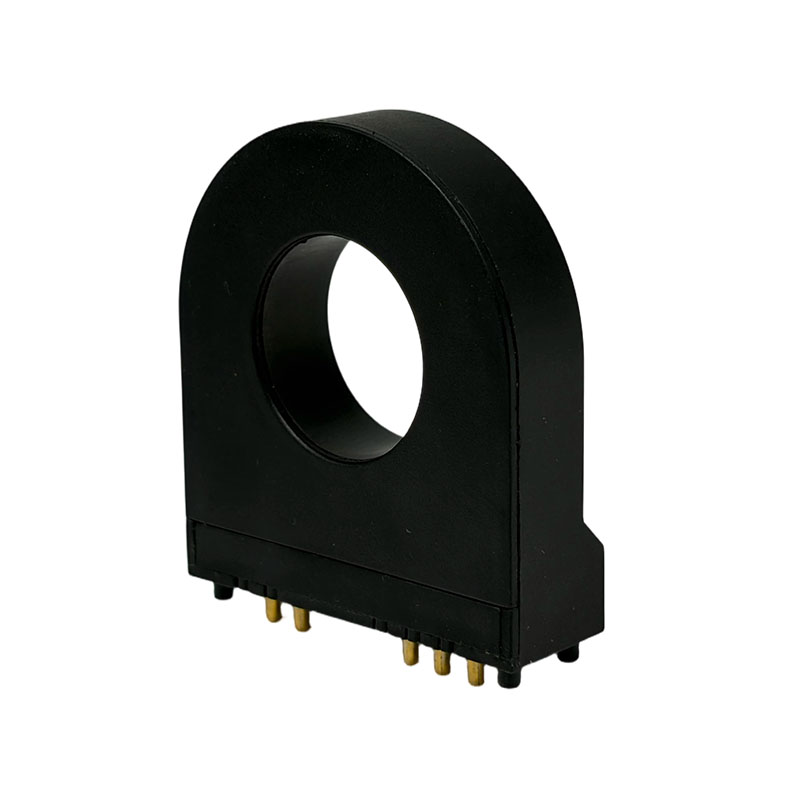

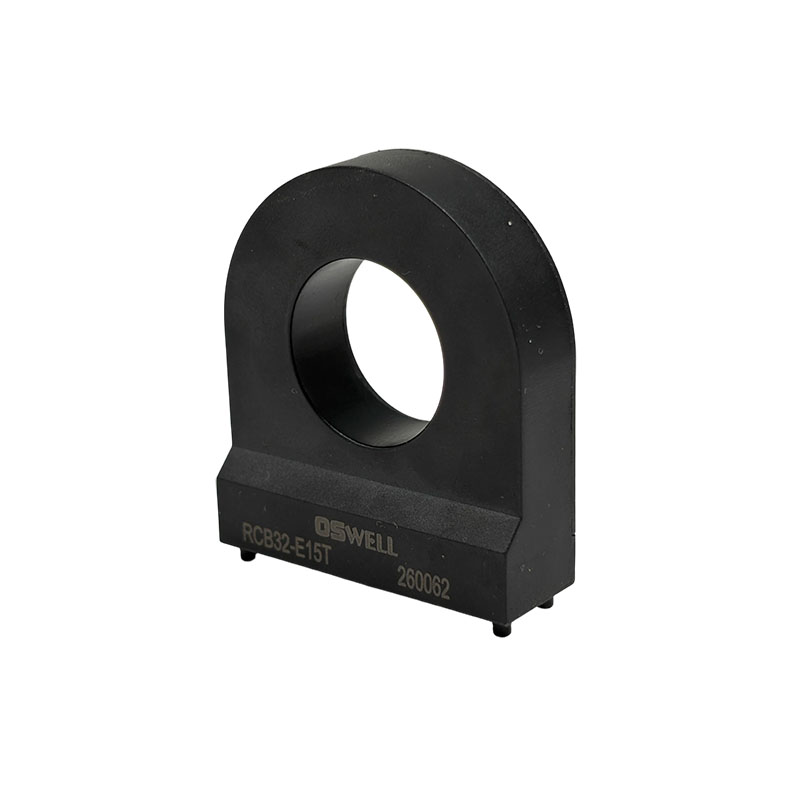

RCB32 E15T Type B Residual Current Sensor
RCB32 E15T Type B Residual Current Sensor is optimized for buyers who need reliable leakage current detection and power system monitoring in electrical equipment, EV charging, renewable energy, and industrial control projects. The updated fields clarify the sensor type, model direction, application value, and procurement keywords for overseas search.
RCB32 E15T Type B Residual Current Sensor technical overview
RCB32 E15T Type B Residual Current Sensor is organized for buyers comparing Power System Sensor for smart energy meters, current measurement, EV charging, meter cases, LCD modules, relays, terminals, and power monitoring projects. Review the existing product details and images below, then compare related Eoswell products for compatible sourcing options.
Trip-Current(residual current related characteristics)
| Wav. | Freq. | Min. | Typ. | Max. | Unit |
| AC | 50Hz | 20.0 | 23.0 | 26.0 | mA |
| A0 | 50Hz | 11.0 | 20.0 | 30.0 | mA |
| A90 | 50Hz | 10.0 | 20.0 | 30.0 | mA |
| A135 | 50Hz | 10.0 | 28.0 | 35.0 | mA |
| 2PDC | 50Hz | 3.5 | 5.2 | 7.0 | mA |
| 3PDC | 50Hz | 3.1 | 4.6 | 6.2 | mA |
| S-DC | - | 3.0 | 4.6 | 6.0 | mA |
| F | - | 27.0 | 33.0 | 38.0 | mA |
Electrical & Reliability Characteristics
Operating Temperature: -40℃~105℃
Storage Temperature: -40℃~105℃
Operating Humidity: ≤95%
Supply Voltage(VDD): 4.85~5.15VDC
Consumption: ≤110mW
Voltage Input,low level: 0~0.6VDC
Voltage Input,high level: 4.2~5VDC

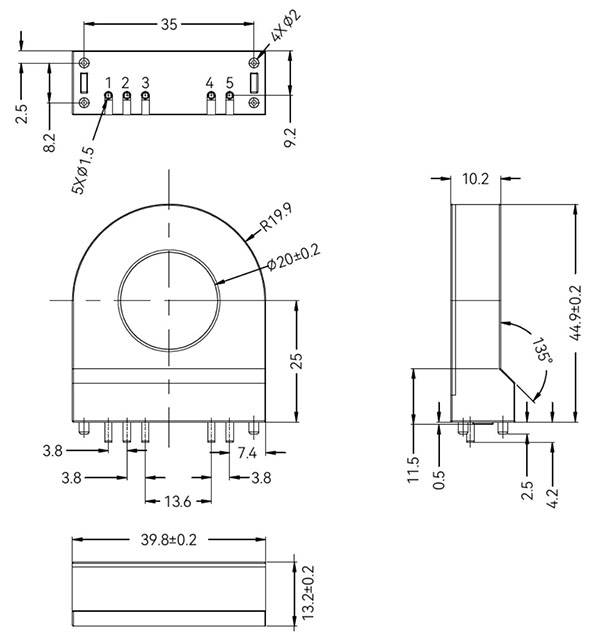

Dimension
