EV Charging Power Level And Metering Component Selection Guide
How To Choose Between 7kW, 22kW, 40kW And 240kW EV Charging Stations For Different Projects
Choosing the right EV charging station is not only about selecting a higher or lower power level. The real decision depends on parking duration, charging turnover speed, site traffic, vehicle type, user expectation, available power capacity, and the business model behind the project. A charger that works perfectly for office staff or retail visitors may be completely wrong for a fleet depot or a public fast-charging site. This guide explains how to choose between 7kW, 22kW, 40kW, and 240kW EV charging stations for different projects so buyers can match charging power to the real use case instead of choosing by output number alone.
Why Power Selection Should Follow Project Logic, Not Just Product Specs
In many projects, buyers first ask for the highest power they can afford. That approach sounds safe, but it often creates the wrong result. If the charger is too small for the real usage pattern, drivers may wait too long and the site may lose value. If the charger is too large for the actual parking duration, the project may spend more on equipment and infrastructure than it really needs. The better approach is to start with how vehicles use the site.
A lower-power charger is usually more suitable for destination charging, where vehicles remain parked for longer periods and charging is part of convenience. A higher-power charger is usually more suitable when charging speed and vehicle turnover have a direct effect on operations or revenue. This is why office buildings, residential-commercial projects, shopping destinations, public parking, and fleet sites often need very different charging strategies even when all of them are “EV charging projects.”
The smartest charger choice is not the most powerful one. It is the one that fits the parking behavior, user expectation, and business goal of the site.

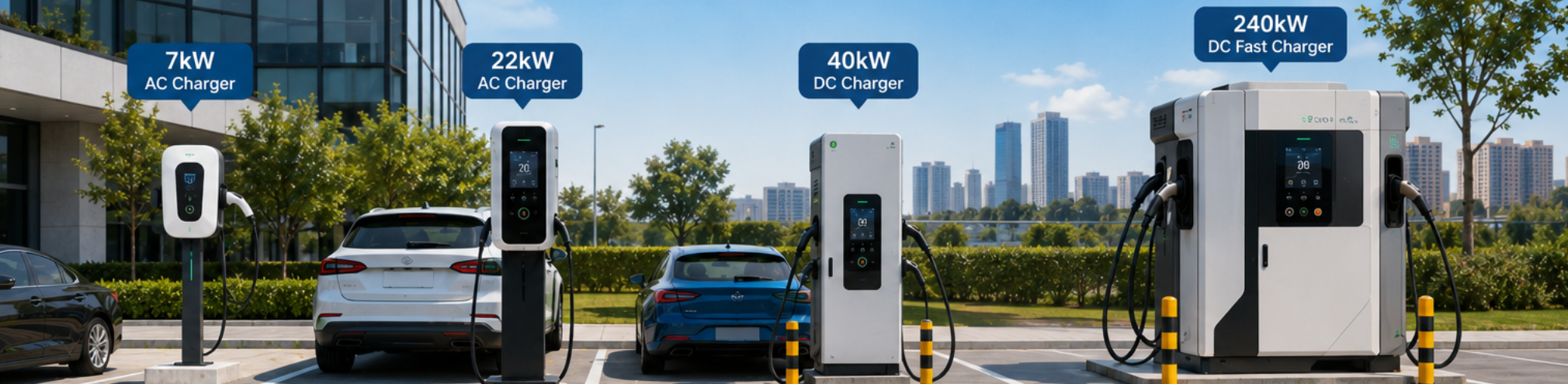

| Power Level | Charging Type | Typical Parking Duration | Best Fit Projects |
|---|---|---|---|
| 7kW | AC Charging | Long stay | Office parking, residential-commercial sites, employee parking, low-intensity destination charging |
| 22kW | AC Charging | Medium to long stay | Commercial real estate, shopping centers, public organizations, mixed-use parking areas |
| 40kW | DC Charging | Medium stay, faster turnover needed | Public parking, roadside business sites, retail projects, commercial areas needing stronger charging performance |
| 240kW | DC Fast Charging | Short stay, high turnover | Fleet charging, public fast-charging hubs, intelligent transportation, high-demand commercial charging projects |
When 7kW Or 22kW Is Usually The Better Choice
A 7kW charger is usually the right choice when vehicles stay parked for a long time and charging is treated as a convenience service rather than a fast-turnover service. This often applies to employee parking, long-stay office users, residential-commercial environments, and low-intensity charging sites where the vehicle has plenty of time to charge while parked.
A 22kW charger is often the better choice when the project still belongs to destination charging, but the site wants stronger commercial flexibility and faster AC service. This can be particularly attractive for office parks, shopping centers, commercial real estate, and public organizations where vehicles may stay long enough to benefit from AC charging but users still expect better performance than a basic low-power charger.
The product brochure shows that the 7–22kW AC charging station supports wall-mounted or post-mounted installation, multiple market connector options, RFID, Plug & Play, BLE, WiFi, 4G, OCPP 1.6J, and IP54 protection. That makes it suitable for more than simple residential use. It can also support smarter commercial destination charging.
In general, if your site earns value from longer parking duration, user convenience, or tenant amenity, 7kW or 22kW is often the better match.
When 40kW Or 240kW Is Usually The Better Choice
A 40kW DC charger is usually the better choice when the site needs more charging speed than AC can provide, but does not yet need ultra-high-power charging. This is often the case in public parking, roadside commercial projects, mixed-use retail environments, and commercial charging projects that want better turnover without moving immediately into the highest power category.
A 240kW DC charger is usually the right solution when charging speed is directly connected to operational efficiency or revenue. This includes fleets, public fast-charging hubs, transportation projects, and high-demand commercial charging sites where the business model depends on moving vehicles through the site more quickly. In these cases, high-power charging is not just a technical advantage. It is part of the business logic.
The brochure supports this clearly. The 30/40kW DC station includes RFID, payment, WiFi, 4G, app control, and commercial-oriented management functions. The 240kW DC charging station is presented as a pedestal type for fleets, intelligent transportation, commercial real estates, and public organizations, with APP remote billing, payment, intelligent control, Ethernet, 4G, and RFID / VIN code support.
If your project depends on turnover speed, stronger utilization, or public fast-charging value, 40kW or 240kW is usually the better business fit.
How To Choose The Right One For Different Project Types

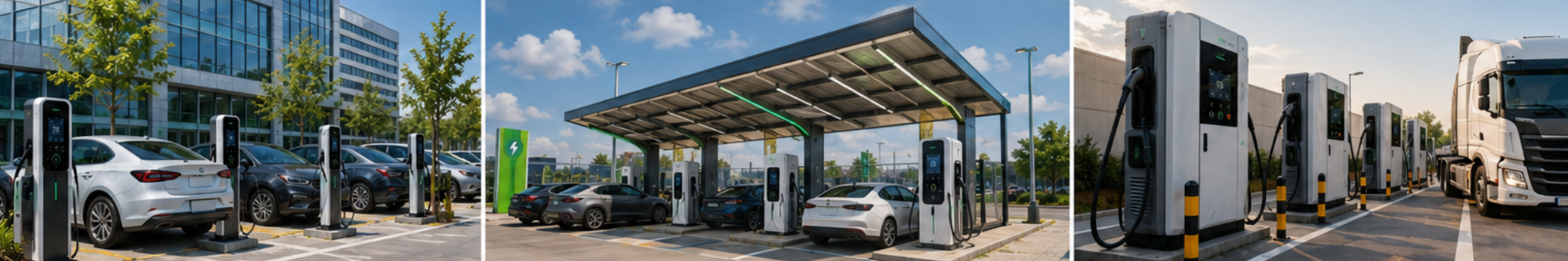

For office parking, commercial real estate, and sites where vehicles stay parked for hours, a 7kW or 22kW charger is often enough and usually more cost-aligned with the real charging behavior. For shopping centers or public parking lots with more mixed traffic, 22kW or 40kW may be a better balance depending on how long users stay.
For roadside or public charging projects where users expect faster service, 40kW DC usually becomes much more attractive. And for fleet depots, high-turnover commercial charging hubs, or projects that treat charging speed as a core value driver, 240kW is often the more strategic option.
The best charger is not the one with the largest output number. It is the one whose power level matches how vehicles behave on your site and how your project expects to create value from charging.
FAQ
Is 7kW enough for a commercial site?
It can be enough when vehicles stay parked for a long time and charging is treated as a convenience feature instead of a fast-turnover service.
When is 22kW a better option than 7kW?
22kW is usually more attractive when the site still uses destination charging but wants stronger commercial flexibility and faster AC charging performance.
Who should choose 40kW DC charging?
Projects that need a stronger public or commercial charging experience but do not yet require ultra-high-power charging often find 40kW DC to be a practical middle-ground solution.
When is 240kW the right decision?
240kW is usually the right choice for fleets, transport projects, public fast-charging sites, and high-demand commercial locations where charging speed and charger utilization are critical.
Contact Us
Looking for the right EV charging solution for your project? Contact our team to discuss power level, connector type, smart functions, and the most suitable charging model for your site.
EV Charging Power Level And Metering Component Selection Guide Component Selection Notes
This article is aligned with the actual EOSWELL product range. For metering, EV charging, utility monitoring and industrial power projects, buyers usually need reliable current transformers, miniature voltage transformers, latching relays, shunt resistors, sensors and stamping parts rather than only a general system description. The important question is how these components support accurate measurement, safe switching and stable project operation.
The first product route should be reviewed through current transformers, latching relays, shunt resistors, battery shunt resistors, power system sensors, metering component product range. These pages connect the article to real product categories and help a visitor move from a search question to a practical inquiry path on the same site.
Procurement Details Buyers Should Confirm
- Confirm current range, voltage range, accuracy class, insulation level, temperature rise, mounting method and wiring layout.
- For charging or metering projects, define whether the design needs CT metering, DC immunity, latching relay switching, shunt measurement or power system sensing.
- Ask for drawings, sample approval, test reports, reliability data, production photos and packaging details before bulk order.
- Clarify whether the component will be used in single phase meters, three phase meters, charging equipment, protection systems or industrial monitoring devices.
- Review certification, test conditions, lead time, repeat order stability and engineering communication before choosing a supplier.
Internal Product Route For Better Evaluation
Additional review should continue with miniature voltage transformers, split core CT, connect and stamping parts, test laboratory, transformer production, CT production. Factory and test pages matter because metering components need repeatable production, controlled winding, stable contact performance, reliable shunt resistance and documented testing. Buyers comparing suppliers should not rely on a short article only.
For project confidence, relay production, application cases, company capability provide cases, company background and inquiry support. These internal links keep authority within the same website and give Google a clearer relationship between component articles and product pages.
Quality Review Before Order Confirmation
Before order confirmation, the buyer should check drawings, tolerance, material, rated current, rated voltage, relay coil voltage, contact resistance, burden, accuracy class, insulation test, temperature rise, life cycle requirements and packaging method. For EV charging and energy metering projects, component reliability directly affects safety, billing accuracy and maintenance cost.
| Check Item | Buyer Value |
|---|---|
| Accuracy and rating | Supports reliable metering, sensing and protection performance. |
| Production and test record | Improves repeat order stability and supplier accountability. |
| Application fit | Prevents using a general component in a demanding project condition. |
Search And Inquiry Value
The page now answers product specific questions and links them to real current transformer, voltage transformer, relay, shunt and test capability pages. This makes the article more useful for search visitors and helps turn technical traffic into qualified inquiries.
