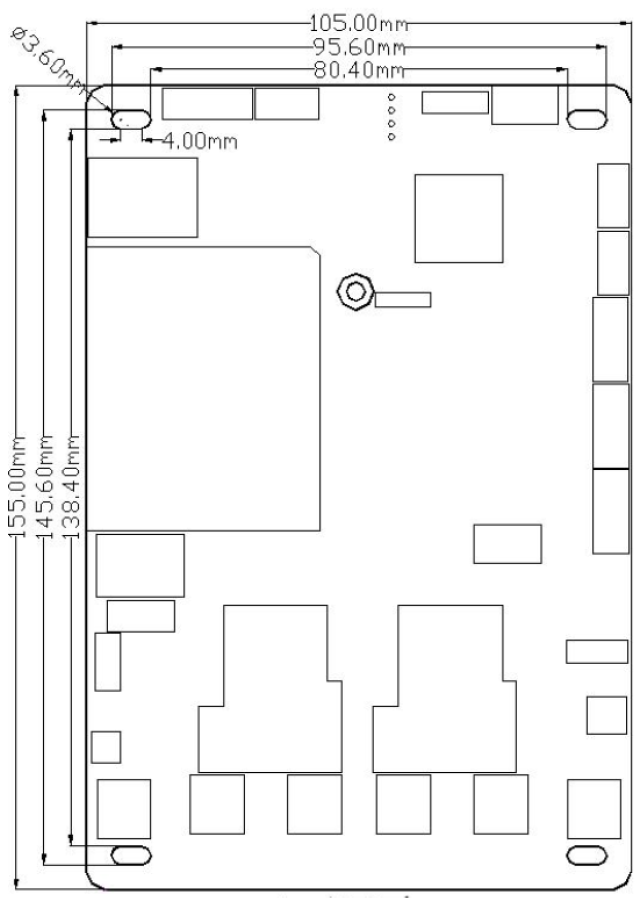

5014000040 7kW European Standard AC Control Board
5014000040 includes a high-precision metering unit and supports multi-period and multi-tariff billing modes. It integrates various protection functions including emergency stop detection, door open detection, overvoltage, undervoltage, overcurrent, undercurrent, CP pin disconnection, and CP grounding. It also supports the latest national standard Type A + DC 6mA leakage detection function and voice broadcast function.
5014000040 7kW European Standard AC Control Board
Features:
The hardware supports simultaneous integration of four networking modules: Ethernet, 4G, Bluetooth, and WiFi, allowing free switching of connection methods via the on-screen interface;
Features onboard OCPP1.6J communication protocol, scalable to OCPP2.0; supports splash screens and connects to overseas main control board maintenance platforms;
Compatible with various displays (typically 4.3/7-inch), supports multi-language display, and allows UI customization;
Supports multiple charging methods including Plug & Charge, card swiping (POS machine supported), password authentication, and QR code scanning;
Supports integration with EMS systems, power limiting, remote diagnostic logs, and OTA upgrades (via operation platform, maintenance platform, or device screen update).
